2 Installation and Commissioning, IRC5

2.1. Overview

353HAC021313-001 Revision: K

2 Installation and Commissioning, IRC5

2.1. Overview

General

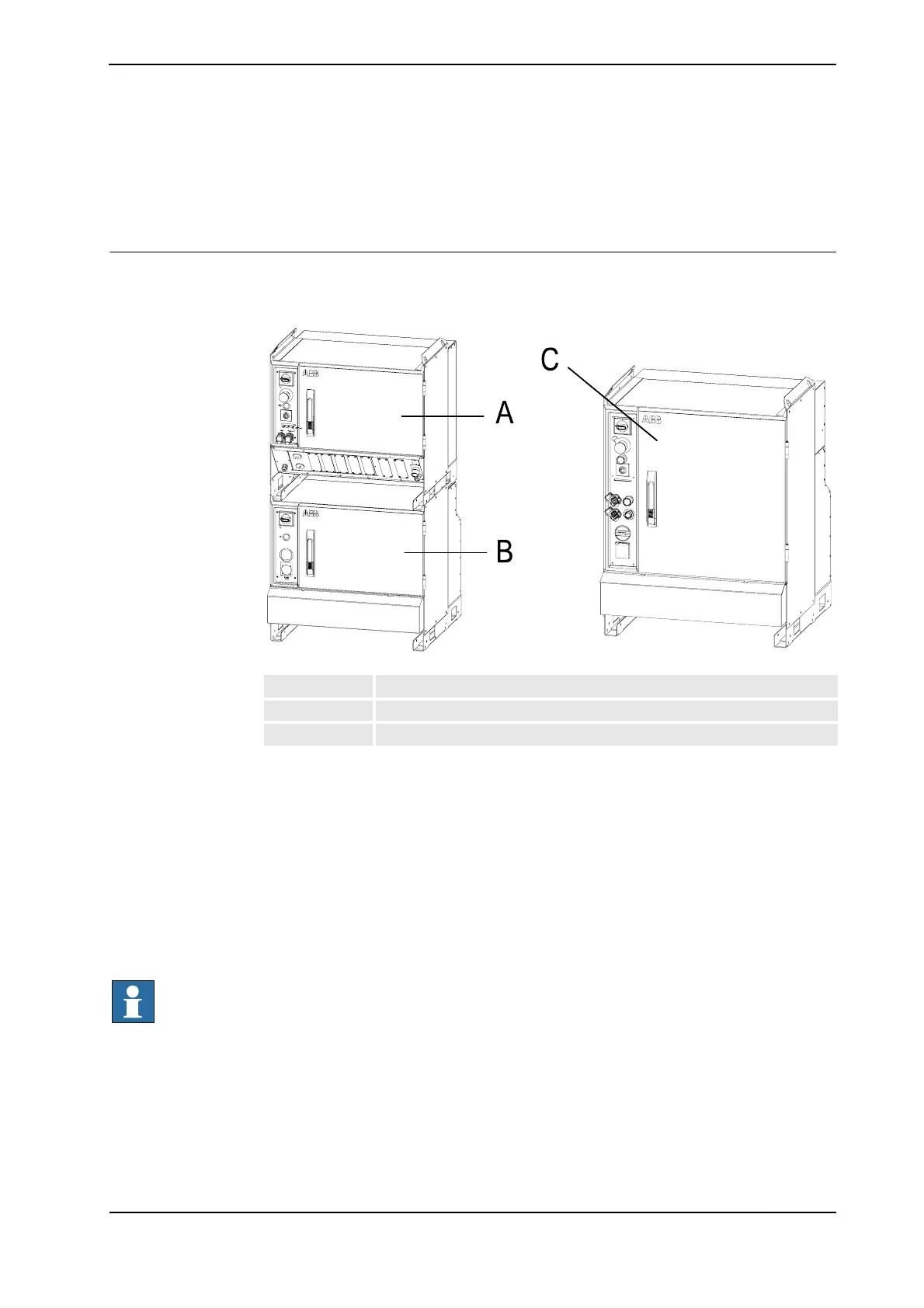

The ABB IRC5 controller is available in two basic configurations: Single Cabinet Controller

and Dual Cabinet Controller.

xx0600002929

The Single Cabinet Controller has all components in one single cabinet and the Dual divides

the components into two modules: Control Module and Drive Module.

The Single Cabinet Controller is regarded as the standard configuration and therefor the

illustration in the procedures detailed in this manual are based on the Single Cabinet

Controller.

If the procedure in general is the same, it is mentioned in each procedure where the part is

located in the Dual Cabinet configuration. If there are significant differences, both cabinet

configurations are shown.

NOTE!

When replacing a unit in the controller, report to ABB:

• the serial number

• articel number

• revision

of both the replaced unit and the replacement unit.

This is particularly important for the safety equipment to maintain the safety integrety of the

installation.

A Dual Cabinet (Control Module)

B Dual Cabinet (Drive Module)

C Single Cabinet
