ABB IRC5 User Manual

4 Repair activities, controller IRC5
4.29. Replacement of transformer unit
3033HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.
4.29. Replacement of transformer unit
Location

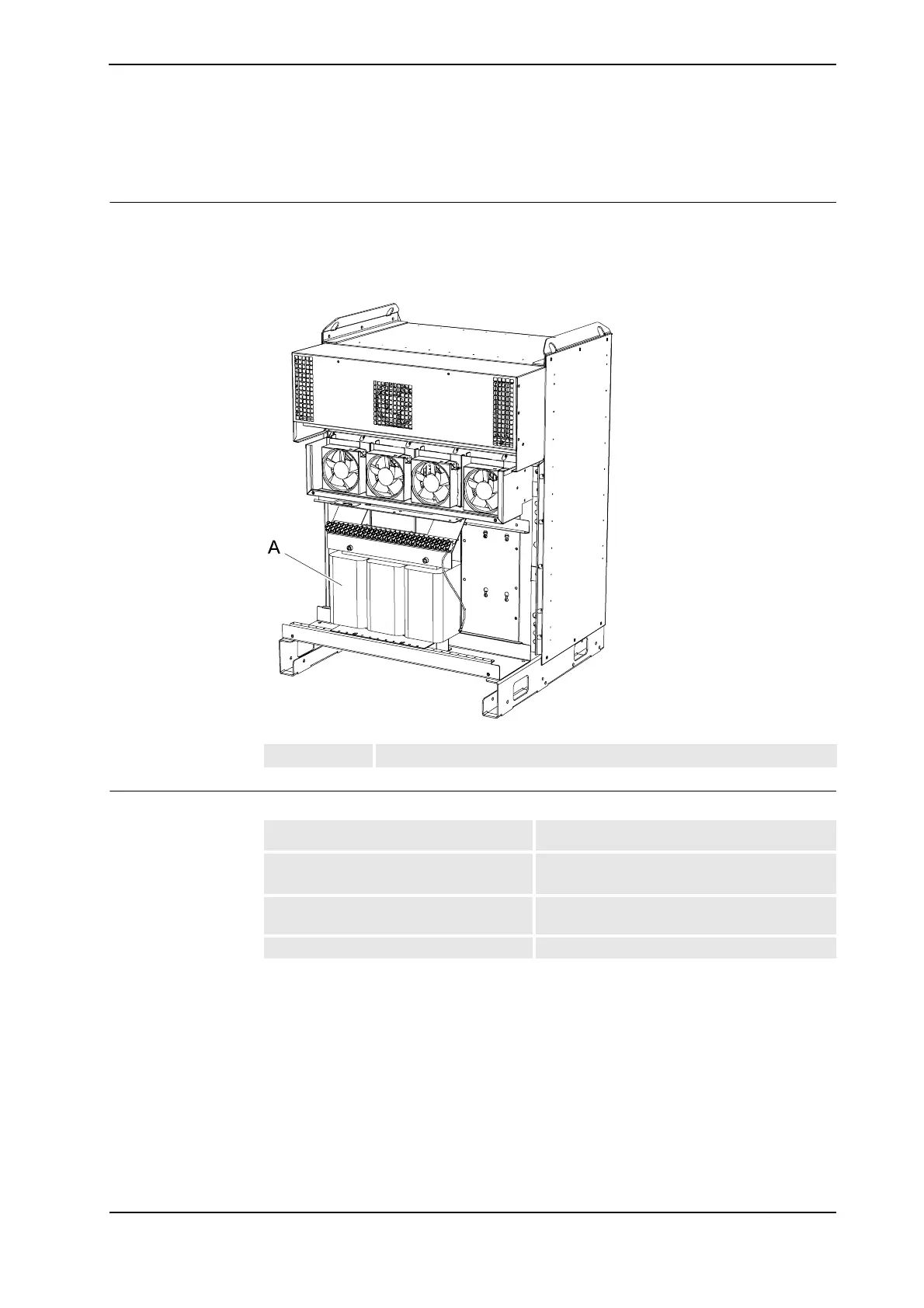

The illustration below shows the location of the transformer unit in the Single Cabinet
Controller.
In the Dual Cabinet Controller the transformer is located in the back of the Drive Module.
xx0500002028
Required equipment
A Transformer
Equipment Note
Transformer unit 13kVA, 6kVA, 1,8kVA
See Miscellaneous parts on page 326.
Standard toolkit The contents are defined in section Standard
toolkit
Circuit diagram See Circuit Diagram on page 341.
Continues on next page
