2 Installation and Commissioning, IRC5

2.9.7. Installation of Euromap and SPI

3HAC021313-001 Revision: K124

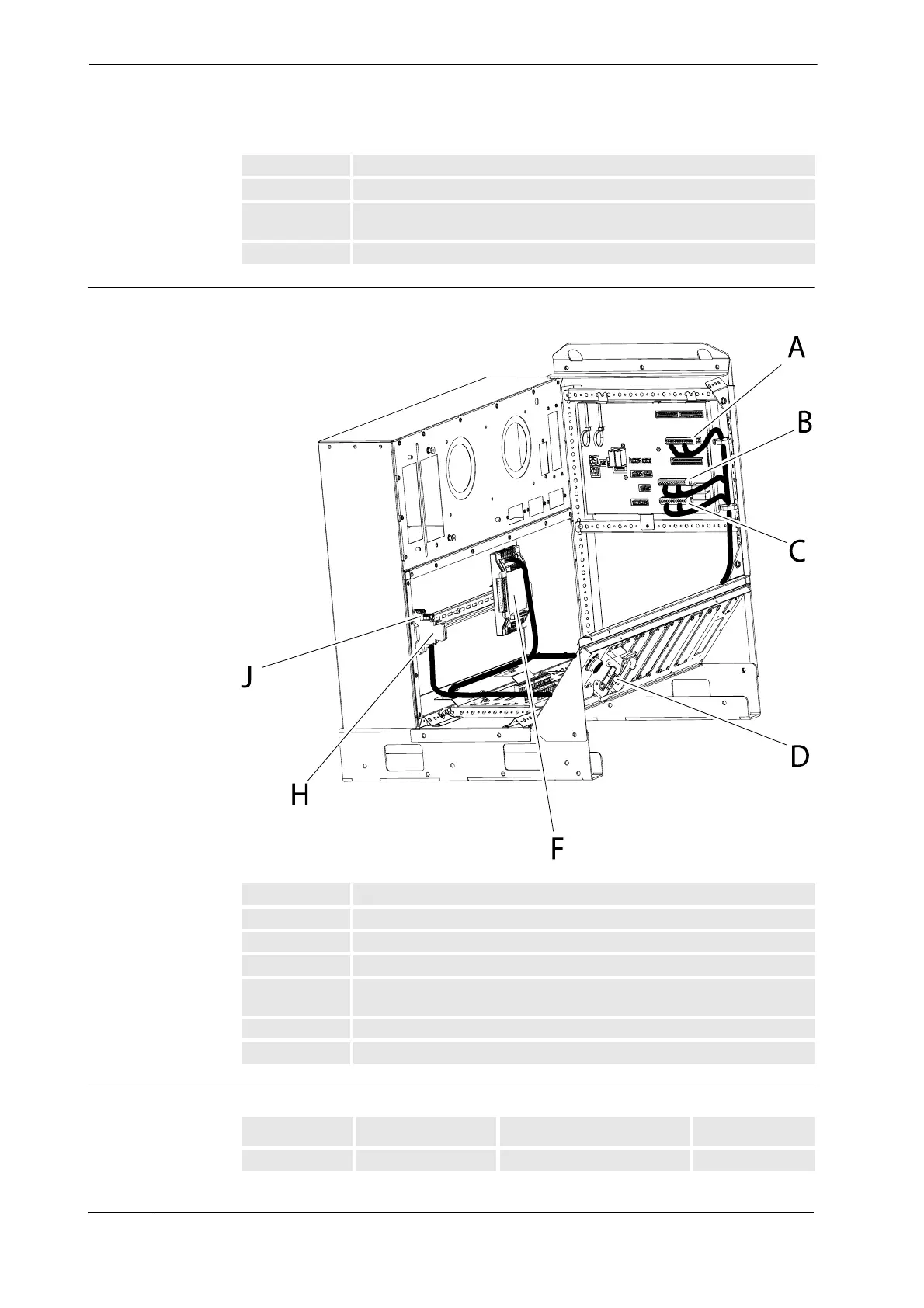

Location of Euromap harness in the Dual Cabinet

xx0500002634

Required equipment for Euromap 67 (Option no. 671-2)

E Relay 24K1 and Relay 24K2

G Position switch terminal XT13

H Euromap 67: Digital 24 VDC I/O (I/O 1) Euromap 12 and SPI: Digital Relay

I/O

K Connector XS13

A Connector A21.X5, on Panel board

B Connector A21.X1, on Panel board

C Connector A21.X2, on Panel board

D XS13 connector

F Euromap 67: Digital 24 VDC I/O (I/O 1) Euromap 12 and SPI: Digital Relay

I/O

H XT31

J Connector XS13 Relay 24K1 Relay 24K2

Equipment Art. number Description Note

Cabling 3HAC025478-001 internal in cabinet Single Cabinet

Continued

Continues on next page
