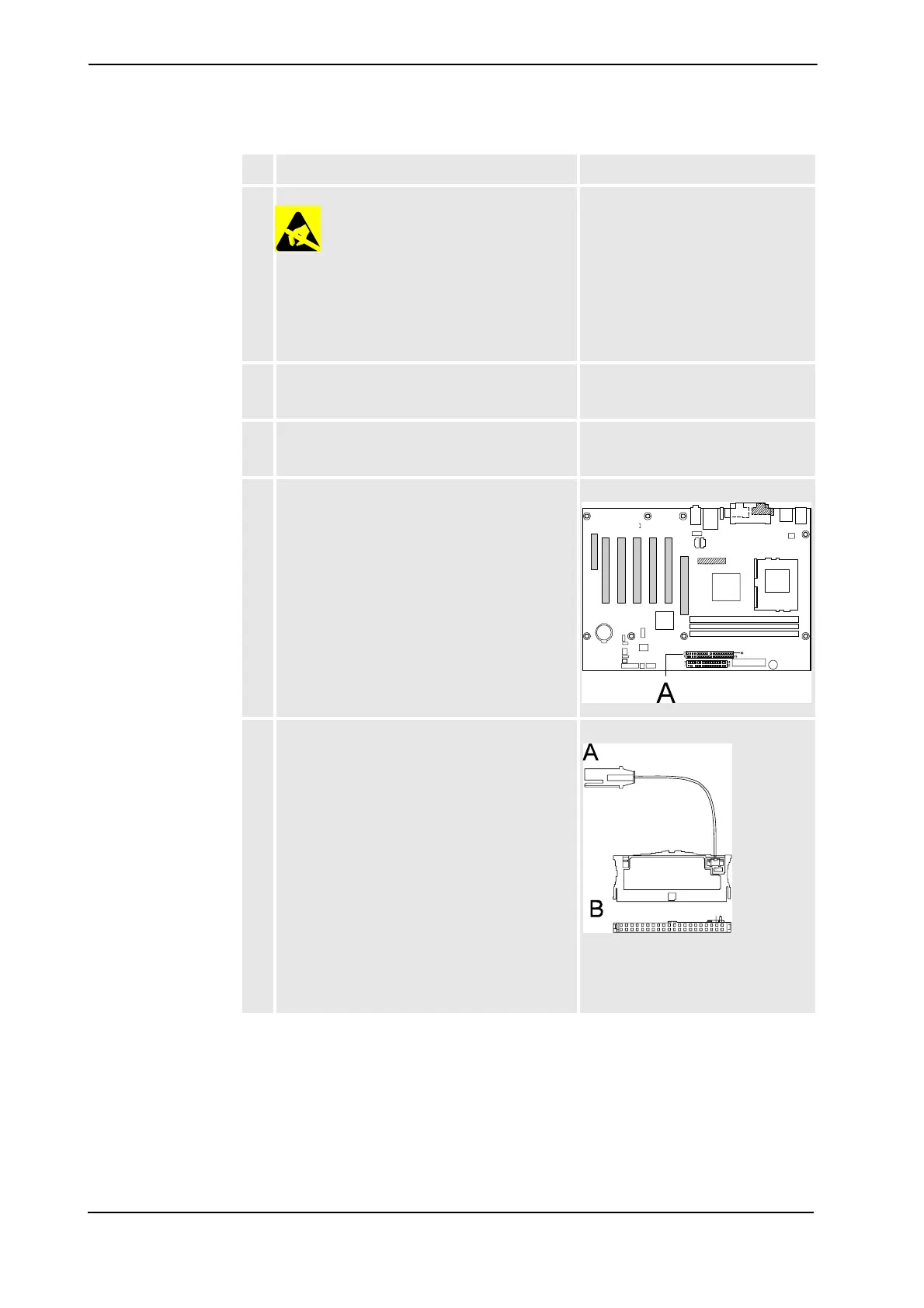

2 Installation and Commissioning, IRC5
2.9.6. Installation of extra mass memory in computer unit DSQC623
3HAC021313-001 Revision: K122
© Copyright 2004-2008 ABB. All rights reserved.
2.
esd
WARNING!
The unit is sensitive to ESD, before handling the
unit please observe the safety information in
section WARNING - The unit is sensitive to
ESD! on page 29
3. Remove the computer unit. Detailed in section, Replacement of
computer unit DSQC623 on page
222.
4. Open the computer unit. Detailed in section, Replacement of
motherboard in computer unit
DSQC623 on page 230
5. Locate the IDE connector.
xx0400000895
6. Connect the IDE flash module to the IDE
connector and the power connector to the
connector from the computer power supply.
xx0500001907
Parts:
• A: power connector
• B: IDE flash module
Action Note/illustration
Continued
To Next Page
