4 Repair activities, controller IRC5
4.21. Replacement of computer power supply in computer unit DSQC623
3HAC021313-001 Revision: K278
© Copyright 2004-2008 ABB. All rights reserved.
6. Refit the air deflector plate, and tighten the
attachment screw.

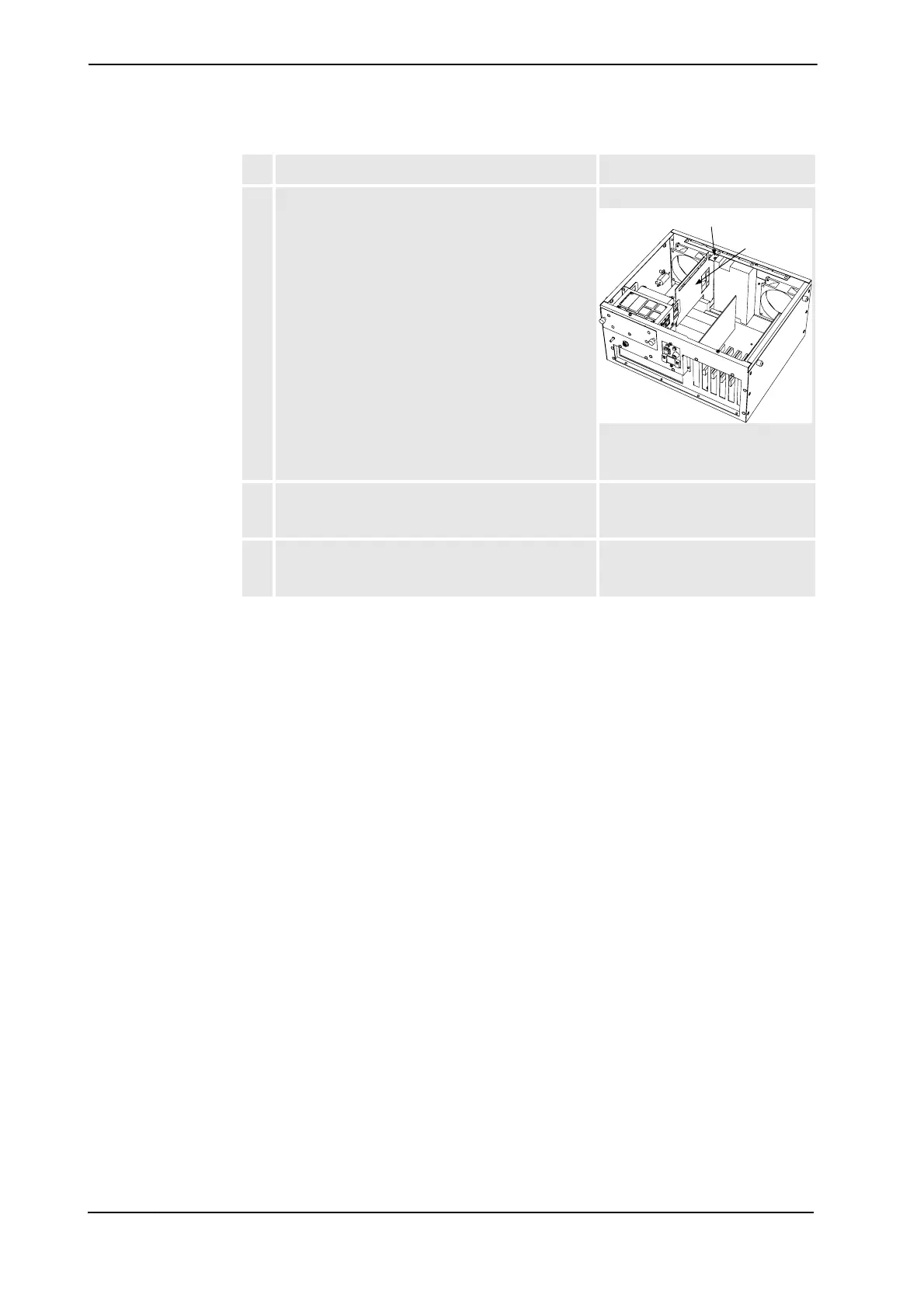

xx0400001135
• A: attachment screw
• B: air deflector plate
7. Refit the computer unit cover. Detailed in section Replacement
of motherboard in computer unit
DSQC623 on page 230.
8. Refit the computer unit. Detailed in section Replacement
of computer unit DSQC623 on
page 222.
Action Note/Illustration
A
B
Continued
