2 Installation and Commissioning, IRC5
2.5.15. Connecting a Limit switch override push button
3HAC021313-001 Revision: K86
© Copyright 2004-2008 ABB. All rights reserved.

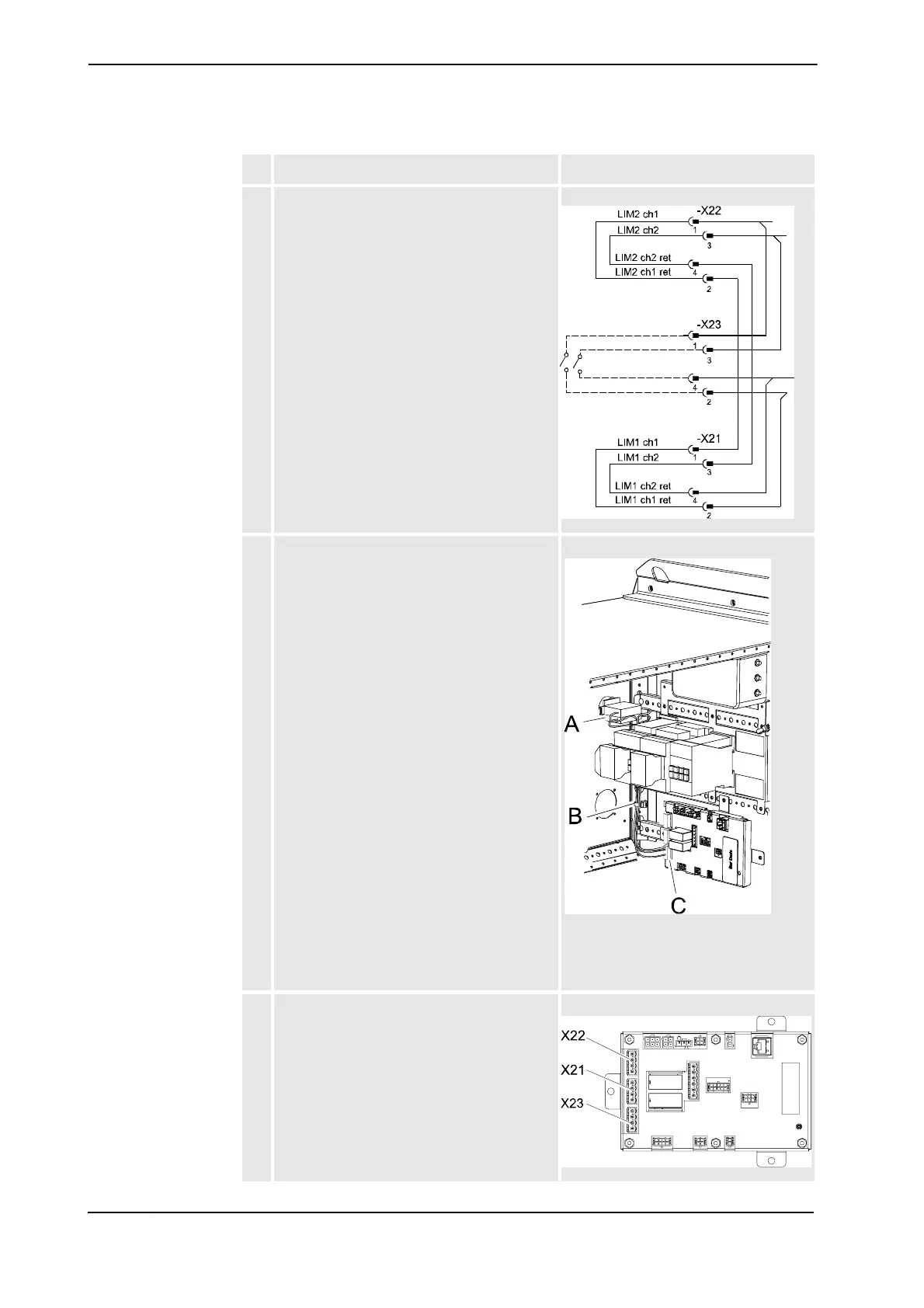

6. Connect wires from the contact blocks to the
connector according to the diagram to the
right.
xx050000
7. Route the wires together with the existing
harness on the left wall.
xx0500002564
• A: Contact block
•B: Wires
• C: Connector X23
8. Fit the connector to the X23 connector on the
contactor interface board.
xx0500002087
Action Note/illustration
Continued
To Next Page
