54-22
Catalyst 6500 Series Switch Software Configuration Guide—Release 8.7
OL-8978-04
Chapter 54 Configuring ASLB
ASLB Redundant Configuration Example

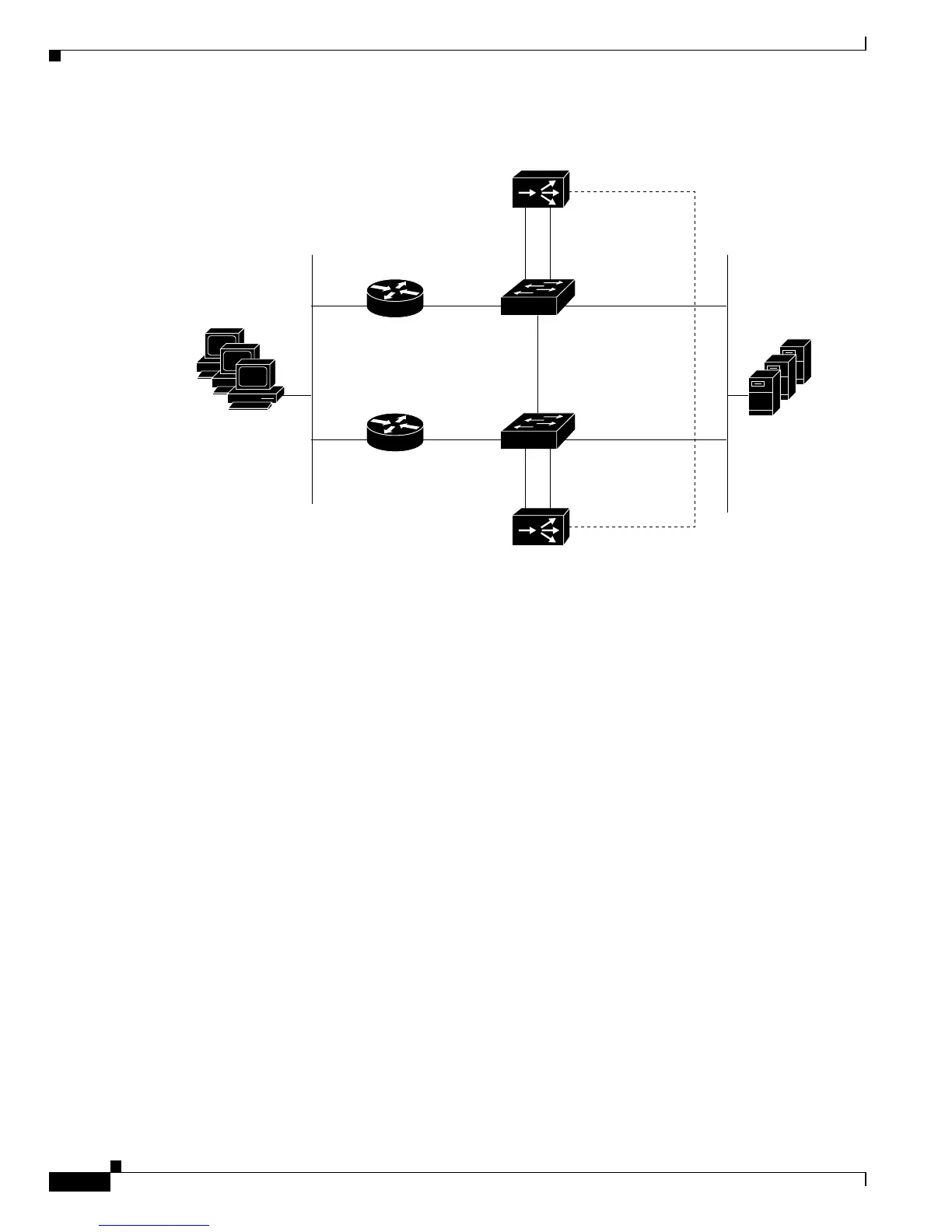

Figure 54-5 ASLB Redundant Configuration Example
IP Addresses
The IP addresses are as follows:
• Router 1, f1 IP address: 7.0.0.100 (network 7)
• Router 2, f1 IP address: 7.0.0.101 (network 7)
• HSRP IP address: 7.0.0.1 for network 7
• Router 1, f2 IP address: 5.0.0.100 (network 5)
• Router 2, f2 IP address: 5.0.0.101 (network 5)
• HSRP IP address: 5.0.0.2 for network 5
• LocalDirector IP address: 5.0.0.1
• Server IP address: 5.100.100.100
• VIP address for servers: 13.13.13.13
