Copyright 2013 Baker Hughes Company.
104 | DPI620G Instruction Manual–English
Chapter 8. Documenting
The data logging indicator flashes on the status bar to show that a reading is logged.
The data is stored in the internal memory, SD card, or external USB Flash Drive if connected, until
th
e Data logging is stopped.
8.2.3 File Review
To look at saved Data log files select RECALL from the DATA LOGGING menu (see Figure 8-3
on page 102).

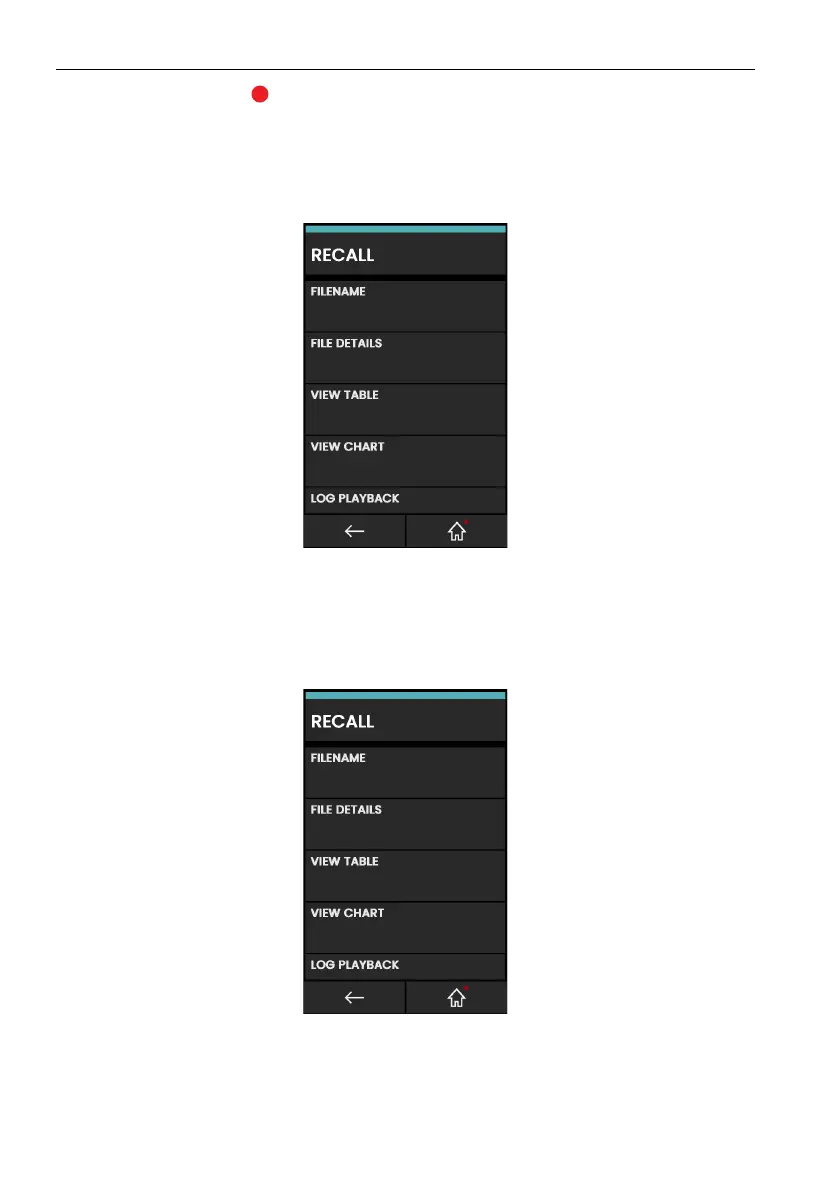

Figure 8-5: Data Log File Menu
To see a summary of the Data log file:
1. Tap on FILENAME to display the list of data files.
2. Select the file to be shown.
3. Select FILE DETAILS to look at the date/time stamp and the total number of data points
logged to that file.
Figure 8-6: Data Log File Details
To look at a data file as a table:
1. Tap on FILENAME to show the list of data files.
To Next Page
