Copyright 2013 Baker Hughes Company.
36 | DPI620G Instruction Manual–English
Chapter 3. Calibrator
3.1.2 Calibrator Screen Information

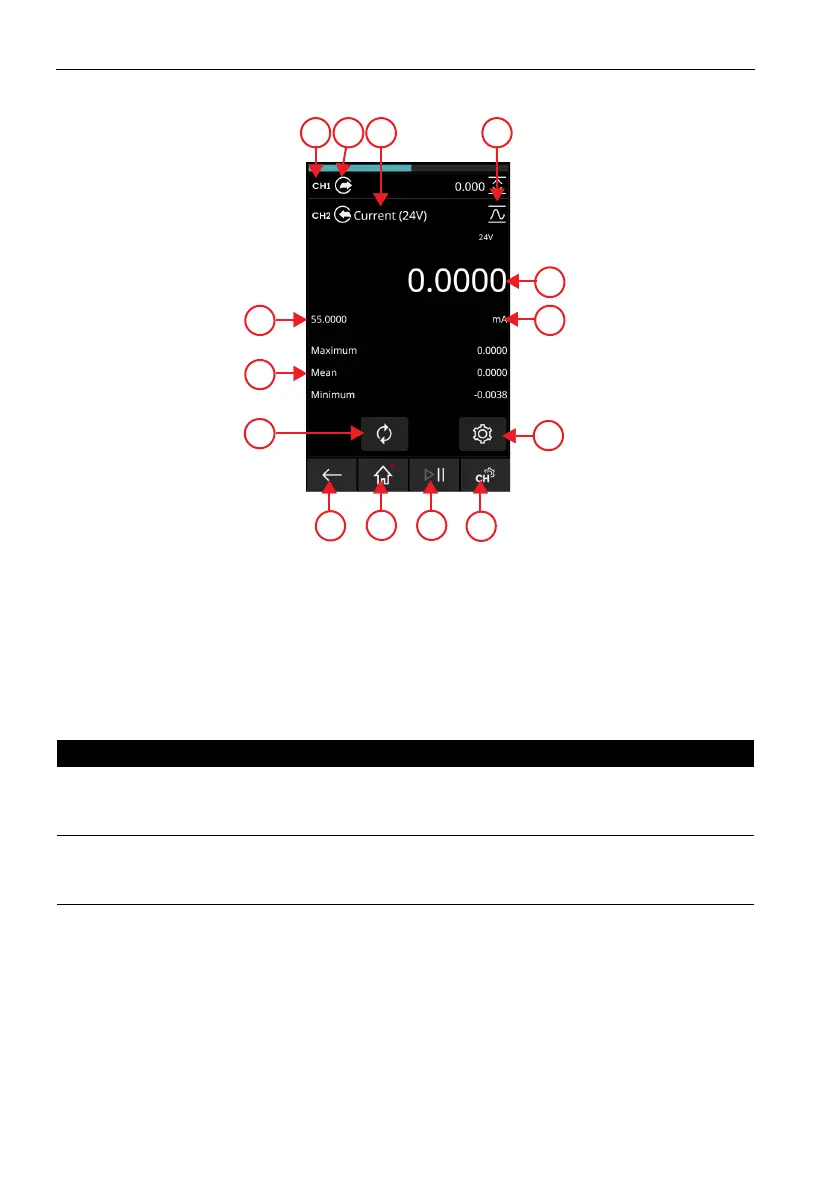

Figure 3-3: Calibrator Screen Information Example
3.2 Error Indications
1. Make sure that the range is correct.
2. Make sure that all the related equipment and connections are serviceable.
1 Channel identification 2 Channel Direction (Source/Measure)
3 Channel Function 4 Utility Icon
5 Measurement Reading 6 Measurement Unit
7 Channel Settings 8 Task Menu
9 Hold/Pause Readings 10 Home or Dashboard
11 Go back one screen 12 Reset
13 Additional Measurement Data 14 Sensor Full-scale value
Display Condition
<<<<<
Under Range: The display shows this symbol for this condition:
Reading < 110% Negative Full Scale (Pressure)
Reading < 102% Negative Full Scale (Electrical)
>>>>>
Over Range: The display shows this symbol for this condition:
Reading > 110% Positive Full Scale (Pressure)
Reading > 102% Positive Full Scale (Electrical)
1
2
3
4
5
6
7
8
910
11
12
13
14
