Chapter 4. Electrical Tasks
4.3 Measure AC Voltage (CH1) – 20V RMS Maximum
Note: This function is not available on a DPI620G-B.
4.3.1 DPI620G Measure AC Voltage (CH1) – 20V RMS Maximum
Figure 4-7
shows CH1 set-up to measure an AC voltage (0 to 20V RMS) or AC mV (0 to
2000mV RMS).

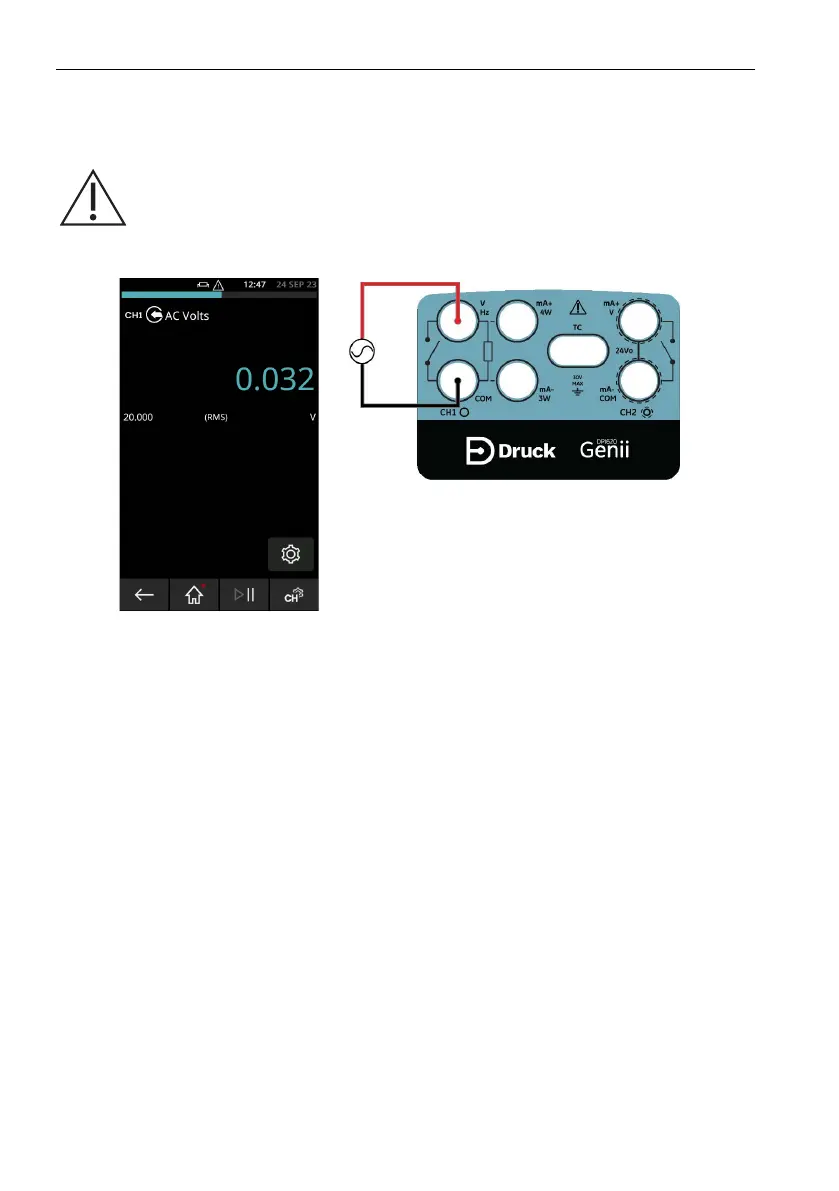

Figure 4-7: Measure AC Volts or AC mV on CH1 (Range ± 20V RMS)
1. Set the applicable channel options: CH1, Measure, AC Volts, V.
2. Complete the electrical connections and continue with the measure operation.
WARNING To prevent electrical shocks, use only the Druck specified
AC probe (Part: IO620-AC) to measure AC voltages that are more than 20V RMS
(maximum: 300V RMS). Refer to Section 4.4.
