174 | DPI620G Instruction Manual–English
Chapter 11. Profibus® PA
Additional folders can be made under My Block by the use of the context menu (accessed with
touch and hold.)

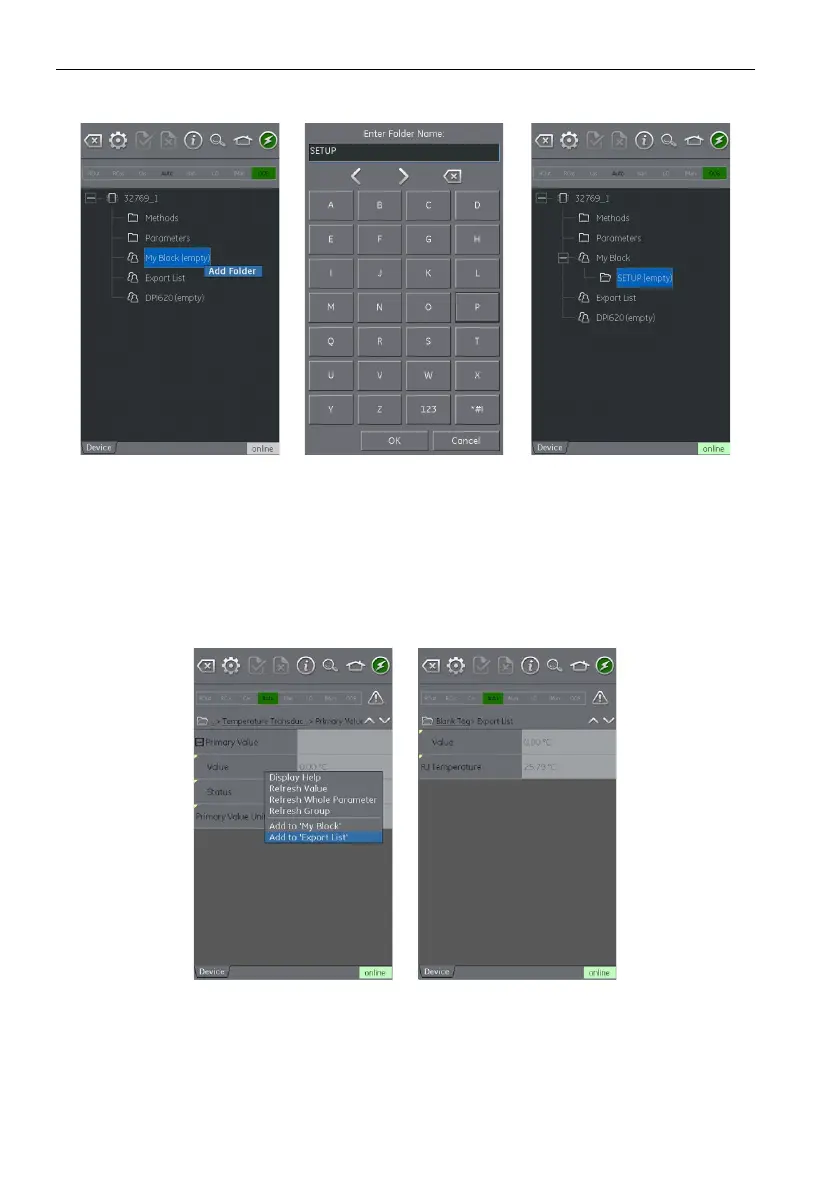

Figure 11-26: Profibus® ‘My Block’
11.12 Profibus® Application – Exporting Variables
The PROFIBUS® application lets the Communications channel window show selected
variables. Use the Export List menu to specify the selected variables. Refer to Section 11.10.2.
Use the context menu in the Variable Description area and select Add to ‘Export List’ to add
pa
rameters to the Export List.
Note: A maximum of six variables (and only variables that return a value) can be added to the
Export List.
Figure 11-27: Adding Items to Export List
