Chapter 4. Electrical Tasks
4.2 Measure DC Voltage
4.2.1 DPI620G Measure DC Voltage
Figure 4-4
shows CH1 set up to measure a DC voltage (0 to 30V) or DC mV (0 to 2000mV).

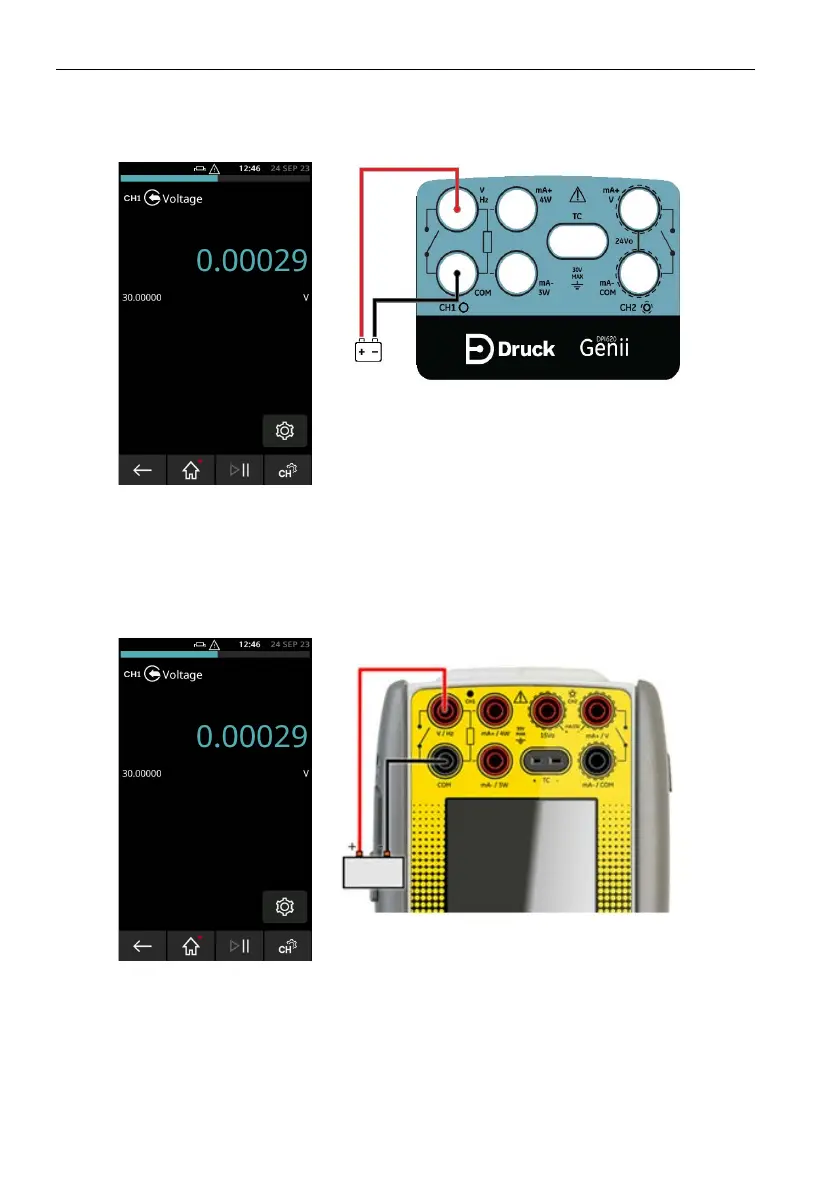

Figure 4-4: Measure DC Volts or DC mV on CH1 (Range ± 30V)
Note: When you use the CH2 connectors, set up CH2 to measure this range.
1. Set the applicable channel option: CH1, Measure, Voltage (or Millivolts), V (or mV).
2. Complete the electrical connections and continue with the measure operation.
4.2.2 DPI620G-IS Measure DC Voltage
Figure 4-
5
shows CH1 set-up to measure a DC voltage (0 to ±30 V) or DC mV (0 to ±2000 mV).
Figure 4-5: Measure DC Volts or DC mV on CH1, Range ±30 V
1. Set the applicable software options: CH1, Measure, Voltage/Millivolts, V/mV.
2. Complete the electrical connections and continue with the measure operation.
