Copyright 2013 Baker Hughes Company.
158 | DPI620G Instruction Manual–English
Chapter 10. FOUNDATION™ Fieldbus

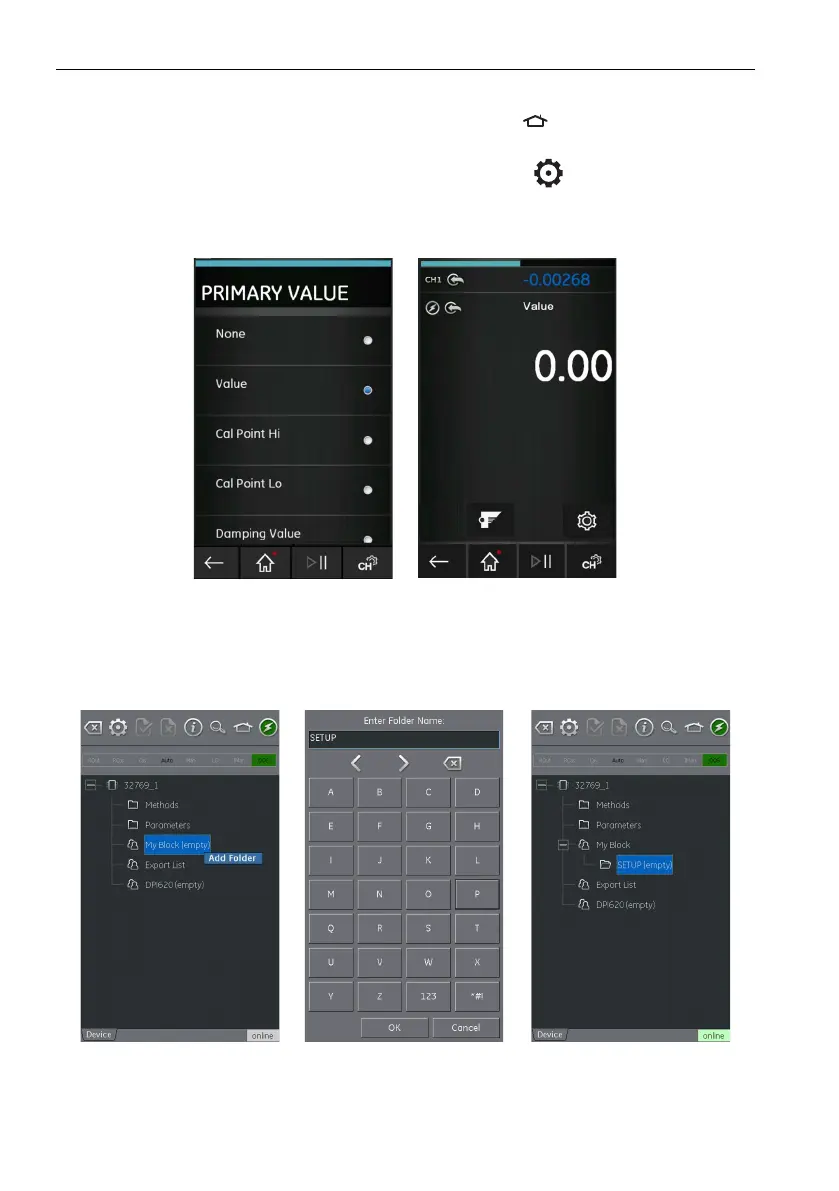

10.13 How to see Exported Variables in the Channel Window
Minimize the FOUNDATION Fieldbus application (tap the Home icon) to go back to the main
application.
Expand the FOUNDATION Fieldbus window, select the Settings icon and then tap
PRIMARY VALUE.
The display will show the Export List of selected parameters.
The FOUNDATION Fieldbus channel window will show a selected parameter.
Figure 10-31: Displaying Primary Value
10.14 Fieldbus Application – My Block
My Block lets the user create menus of commonly used parameters for easy recall.
Additional menus can be created under ‘My Block’. Use the context menu accessed with the tap
an
d hold gesture.
Figure 10-32: Setting up My Block
