Druck DPI620G Series User Manual

Copyright 2013 Baker Hughes Company.
8 | DPI620G Instruction Manual–English
Chapter 1. Overview
6. Use the five Pozidriv screws to attach the battery cover to the case.

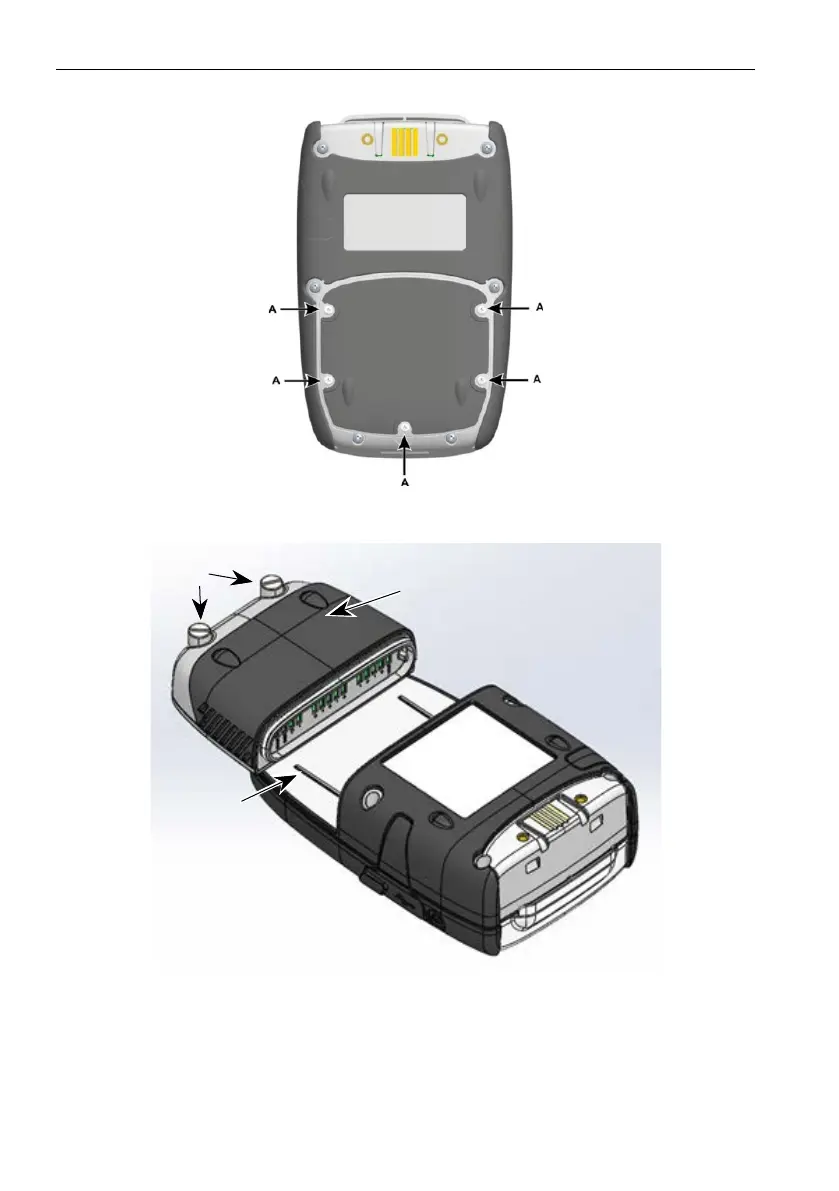

Figure 1-3: Installation of the Battery (Standard)
1.13.2 Installation of DPI620G-IS Battery Pack
Figure 1-4: Installation of the IS Battery
1. Slide the battery fully [1] onto the bottom of the instrument [2] see Figure 1-4.
2. Tighten the thumbscrews [3].
1
2
3
