Copyright 2013 Baker Hughes Company.
English–DPI620G Instruction Manual | 37
TASK MENU
3.3 TASK MENU
Use your finger and swipe from right to left () on the calibrator screen to show the Task Menu.

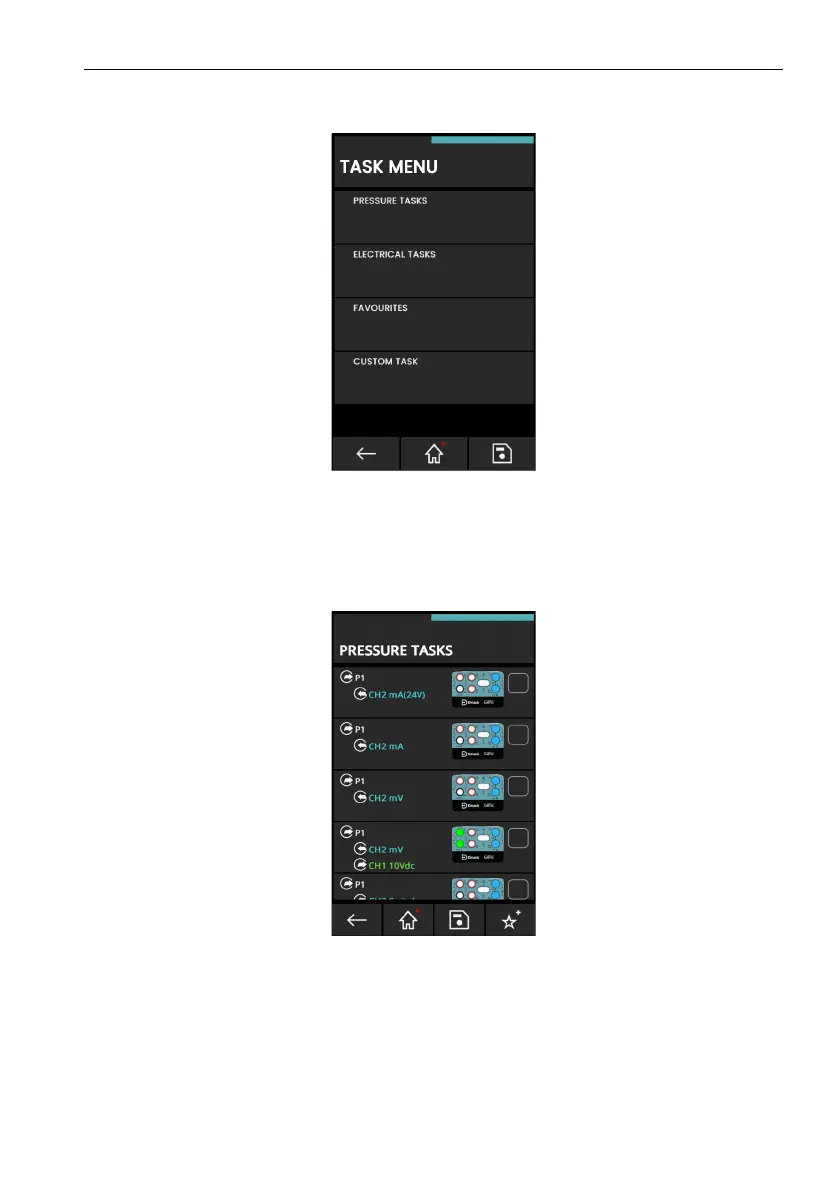

Figure 3-4: Task Menu
3.3.1 PRESSURE TASKS
Select PRESSURE TASKS from the Task Menu to show a list of predefined pressure related
t
a
sks.
The PRESSURE TASKS option will only be available if a pressure sensor is detected, such as
th
e PM620, PM620T, IDOS UPM or TERPS USB.
Figure 3-5: Pressure Tasks
Select the necessary function by the use of either the related text or diagram. The DPI620G will
se
t the functions and then show the Calibrator screen.
