44 | DPI620G Instruction Manual–English
Chapter 3. Calibrator
3.5 Utility Options
Only one utility can operate at a time for each function. Not all source and measure functions have
related utilities.
For all utility options the Restart icon resets the additional readings given by
the selected utility.
Use these menu selections to show to the Utility screen:
1. Tap the CALIBRATOR icon on the Dashboard to show the Calibrator screen (see
Section 3.1.1 on page 34).
2. Show the TASK menu screen (see Section 3.3 on page 37). Swipe your finger from right to
left on the TASK screen or Tap the Test Channel Settings icon in the bottom right
corner of the screen.
3. Tap in the CUSTOM TASK (see Section 3.3.5 on page 40) row to show the TASK
SETTINGS screen.

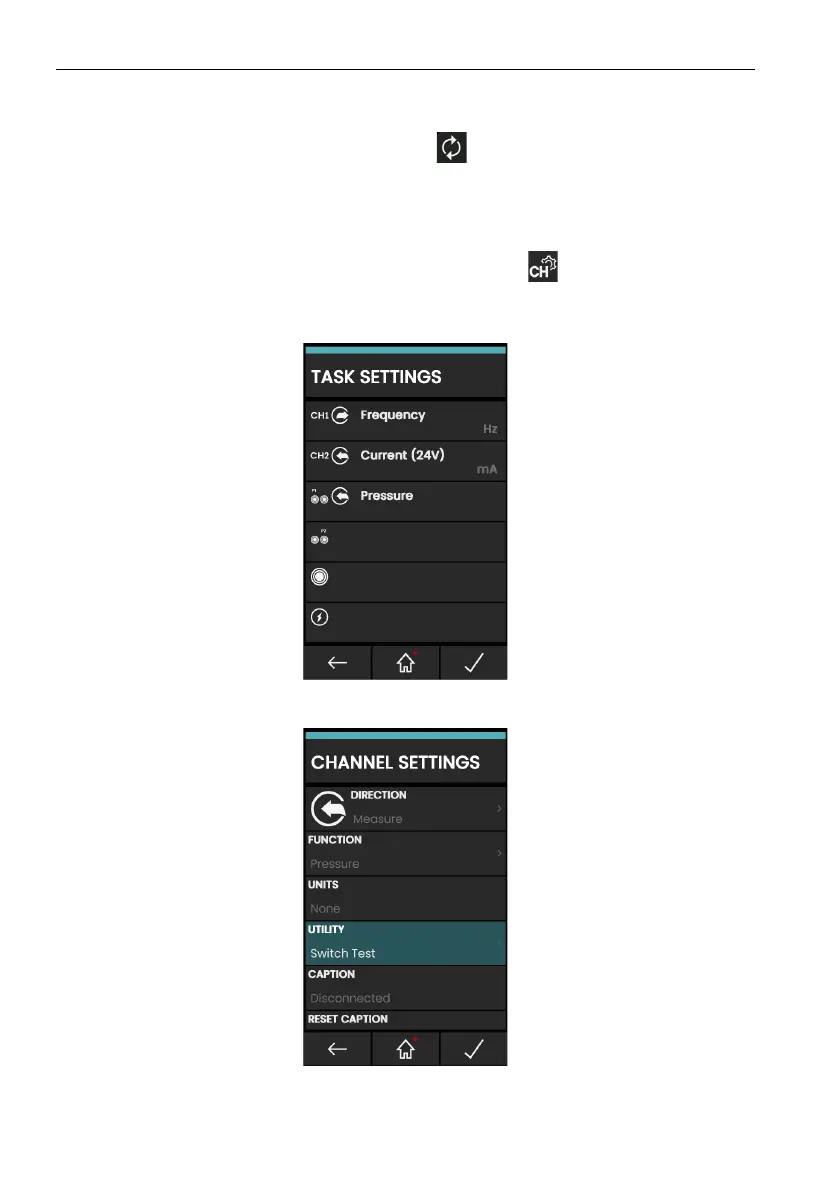

Figure 3-14: TASK SETTINGS
4. Tap in the UTILITY row to show a screen that lists the available Utility options.
Figure 3-15: Selection of UTILITY screen
