English–DPI620G Instruction Manual | 9
How to charge the Battery
1.14 How to charge the Battery
1.14.1 How to charge the DPI620G Battery
1. Push the DC power supply connector into the + 5V DC socket on the side of the unit, see
Figure 1-5.
2. The device can accept a charge when it is in operation or de-energized. The time to give a
full charge can be longer when the unit is energized or is in standby mode.

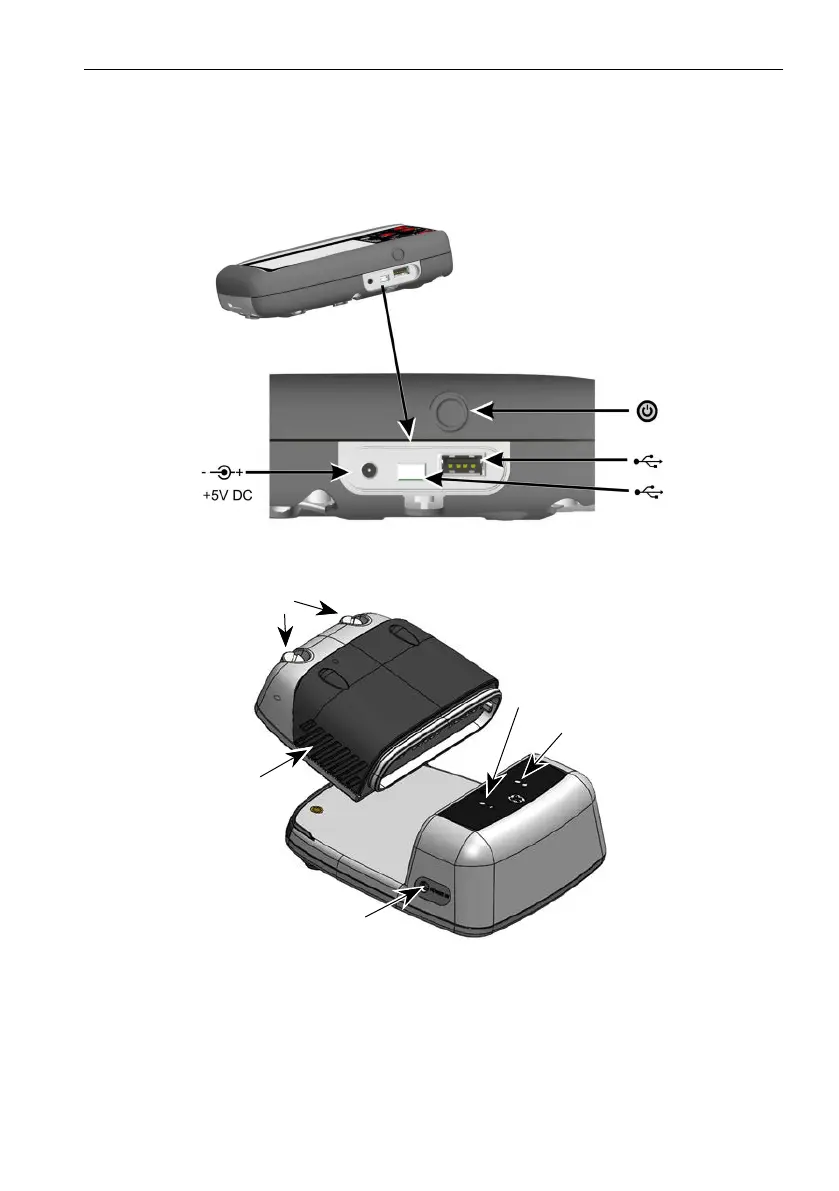

Figure 1-5: DPI620G Power Button and Ports
1.14.2 How to charge the DPI620G-IS Battery
Fi
gure 1-6: DPI620G-IS Battery Pack and Charger
1. Charge the battery in a safe area where there is no possibility of explosive gases.
2. Connect the DC power supply/AC Adapter to the +5V DC connection [1] on the side of the
battery charger body.
1
2
3
LED2
LED1
