5.4 Measure Pressure – PM620 or PM620T

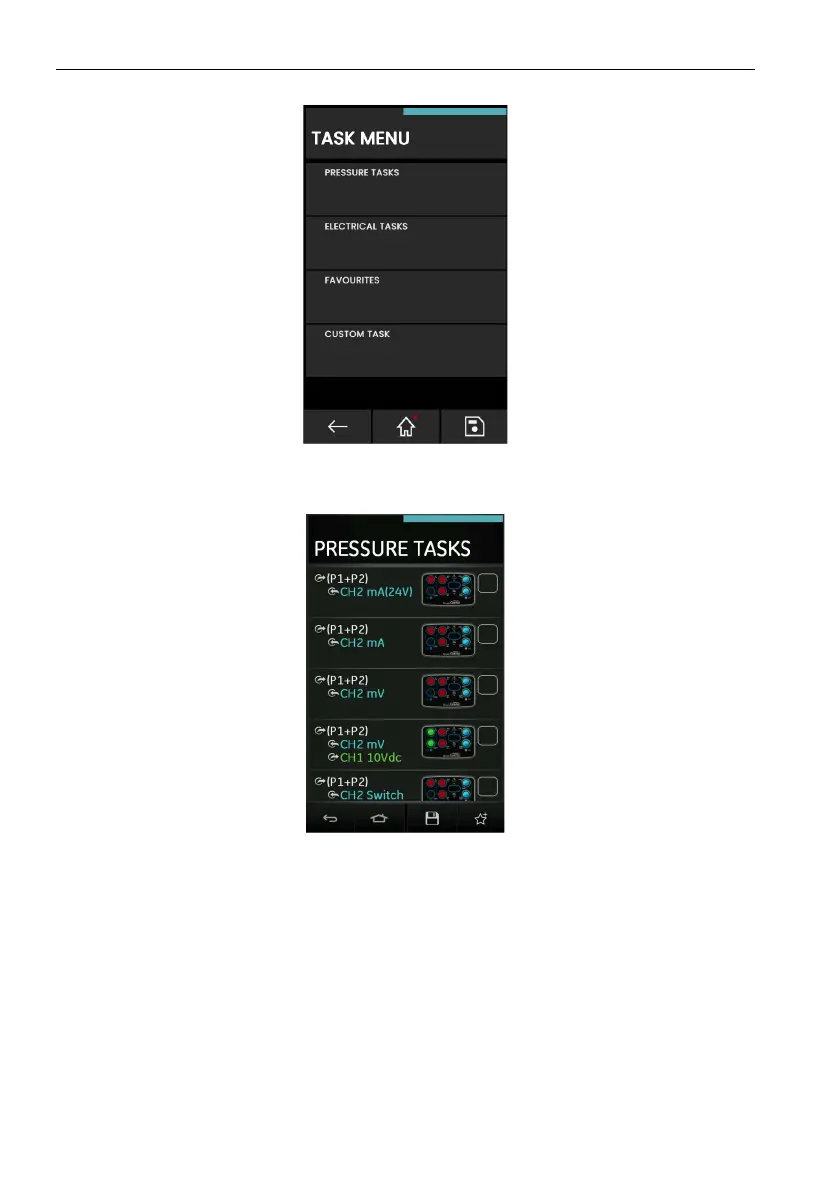

Figure 5-9: Task Menu
When PM620 / PM620T pressure modules are fitted or an external pressure sensor is connected,
th
e Pressure Tasks option is displayed in the Task Menu. Refer to Section 3.3.1 for details.
Figure 5-10: Pressure Tasks
Select the required function by selecting on either the appropriate text or diagram. The DPI620G
wi
ll set the functions and return to the Calibrator screen.
Pressure Functions can also be selected through the CUSTOM TASK function. Refer to
Section 3.3.5 for details.
Tasks can be saved or copied into the FAVOURITES. Refer to Section 3.3.4 for details.
If required, change the UNITS or set a UTILITY for the function:
• Max/Min/Avg
• Switch Test
• Relief valve
To Next Page
