Chapter 4. Electrical Tasks
4.8 Source Frequency on CH1
4.8.1 DPI620G Source Frequency on CH1

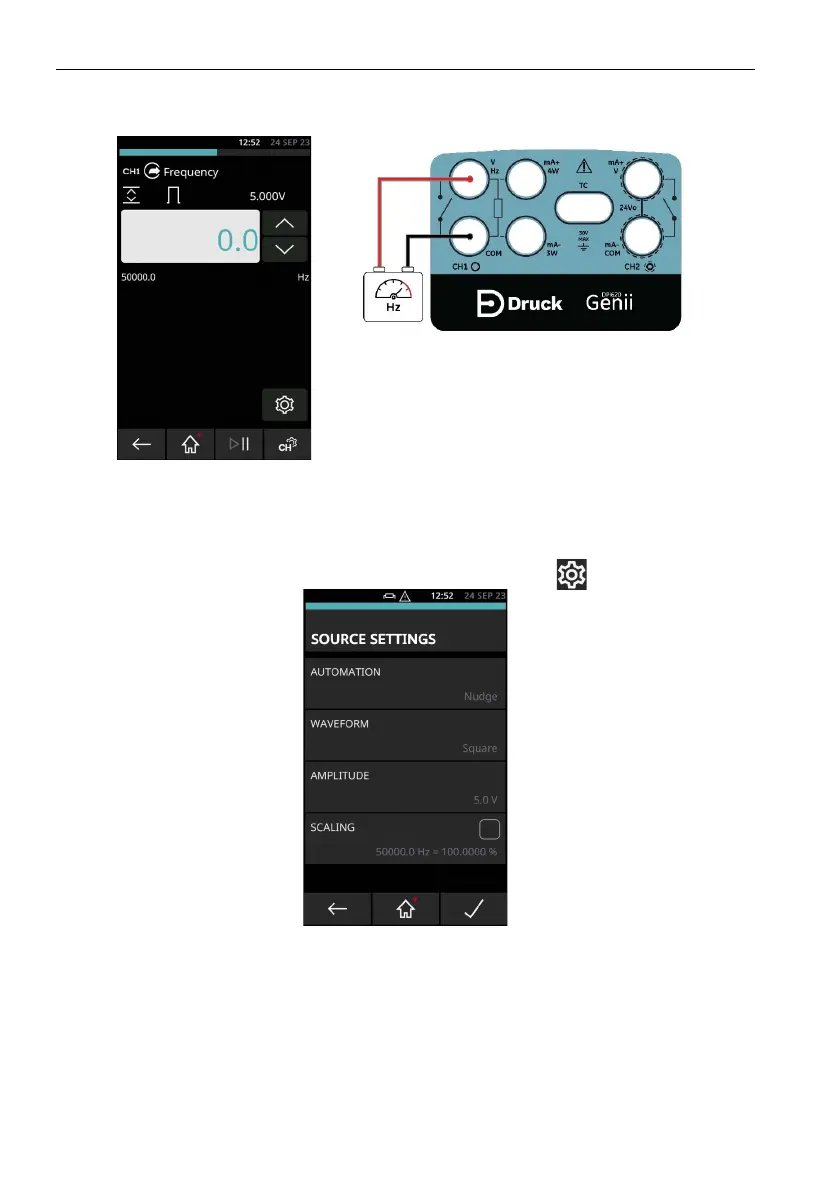

Figure 4-19: Example B – Source Frequency CH1 (Range 0 to 50kHz)
1. Set the applicable channel options.
2. Complete the electrical connections.
3. Default Range: 0 to 50kHz.
If necessary, change the WAVEFORM Setup in the SETTINGS . See Figure 4-20.
Figure 4-20: Source Frequency Settings
• WAVEFORM - Three Waveform options are available: Square (Default), Triangle, Sine:
• AMPLITUDE - Select the Peak-to-Peak value. Default amplitude is 5.0V.
• OFFSET - Set an offset value (this option is only available after the Sine or Triangle
waveform has been selected).
