58 | DPI620G Instruction Manual–English

Chapter 4. Electrical Tasks

4.7 Measure Frequency on CH1

Note: Information under this heading for CH1 does not relate the DPI620G-B instrument.

4.7.1 DPI620G Measure Frequency on CH1

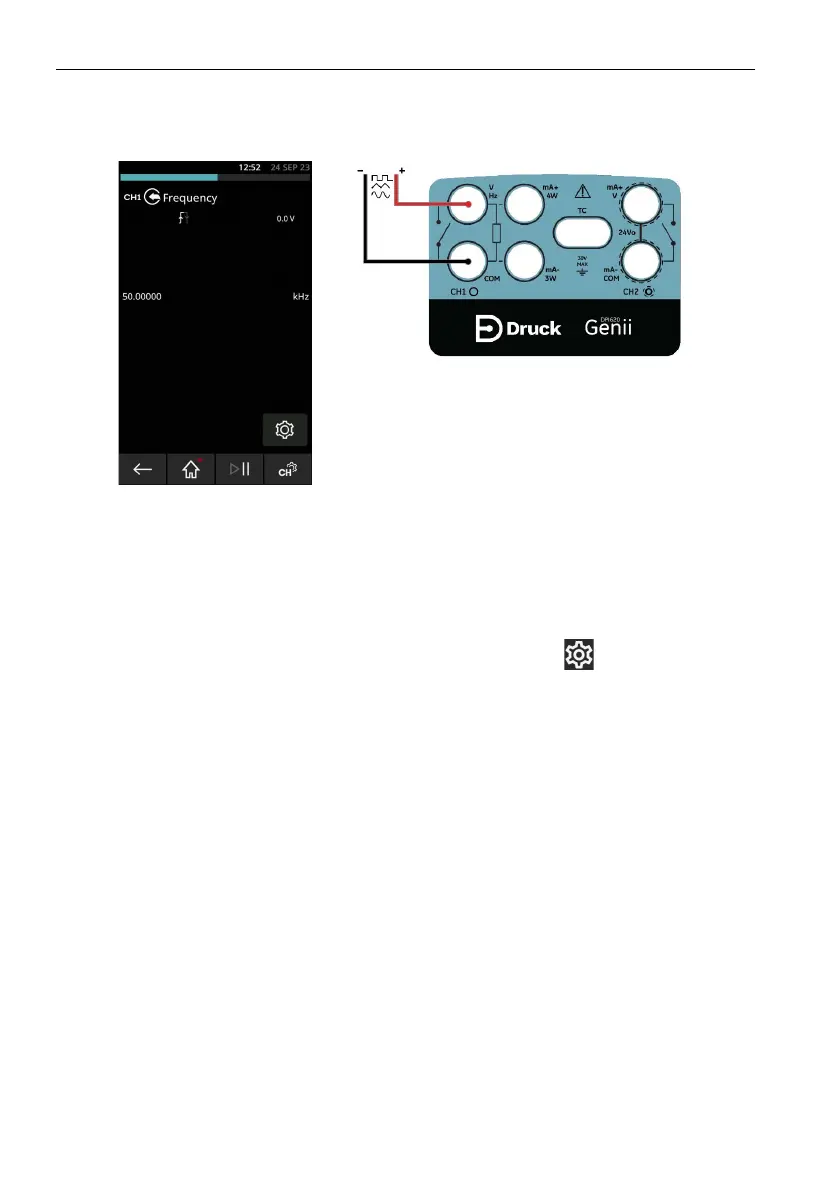

Figure 4-17: Example A – Measure Frequency on CH1 (Range 0 to 50kHz)

1. Set applicable channel options: CH1, Source, Frequency, Hz (or other unit).

2. Complete the electrical connections.

3. Default channel settings:

• Range: 0 to 50kHz

• Trigger level: 2.5V

If necessary, to adjust the Trigger level value tap the SETTINGS icon and select

MANUAL LEVEL.

4. AUTO TRIGGER can be set to on or off.

Note: Use the Manual Level for Manual Trigger only.
