Chapter 10. FOUNDATION™ Fieldbus
10. FOUNDATION™ Fieldbus
10.1 Introduction
FOUNDATION™ Fieldbus (FF) is a device application for the configuration of FF enabled Field
devices. The integrated H1 modem does the online connection. FF can configure and use
devices that directly connect to a H1 Field segment.
10.2 Start up
10.2.1 Start up for the DPI620G
Tap the FIELDBUS icon on the Dashboard to start the FOUNDATION Fieldbus. An
alternative method is to select the FOUNDATION Fieldbus by the use of the CALIBRATOR
fu
nction: Select the Fieldbus option on the COMMUNICATOR channel in the CUSTOM
TASK SETTINGS.
To make a FOUNDATION Fieldbus online connection:
1. Connect the DPI620G instrument to a H1 FOUNDATION Fieldbus device.

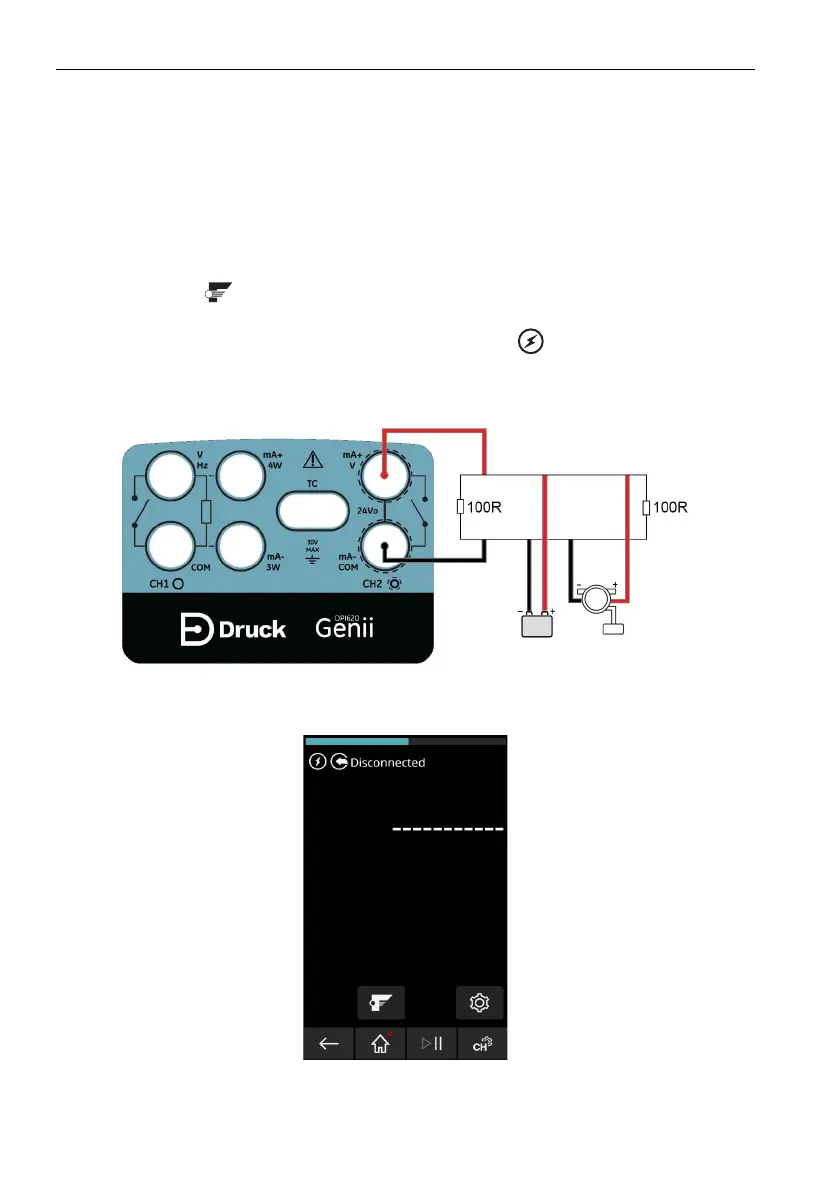

Figure 10-1: Example Connection Diagram FOUNDATION™ Fieldbus
2. Tap on the FOUNDATION Fieldbus channel to make it change to its expanded form. Refer
to Section 3.1.1.
Figure 10-2: Calibrator Fieldbus Channel
FOUNDATION™ Fieldbus
To Next Page
