English–DPI620G Instruction Manual | 115
HART® Offline
9.5.4 Change Device
To change the connected device to another device, select the CHANGE DEVICE option from the
HA
RT menu.
Tap SELECT DEVICE from the list, to choose from devices already detected by the DPI620G or
ta
p SCAN FOR DEVICES to start a new scan.
9.5.5 View Device Summary
Select VIEW DEVICE SUMMARY from the HART menu to view details of the connected device.
The information shown can only be seen in this mode and data cannot be changed.

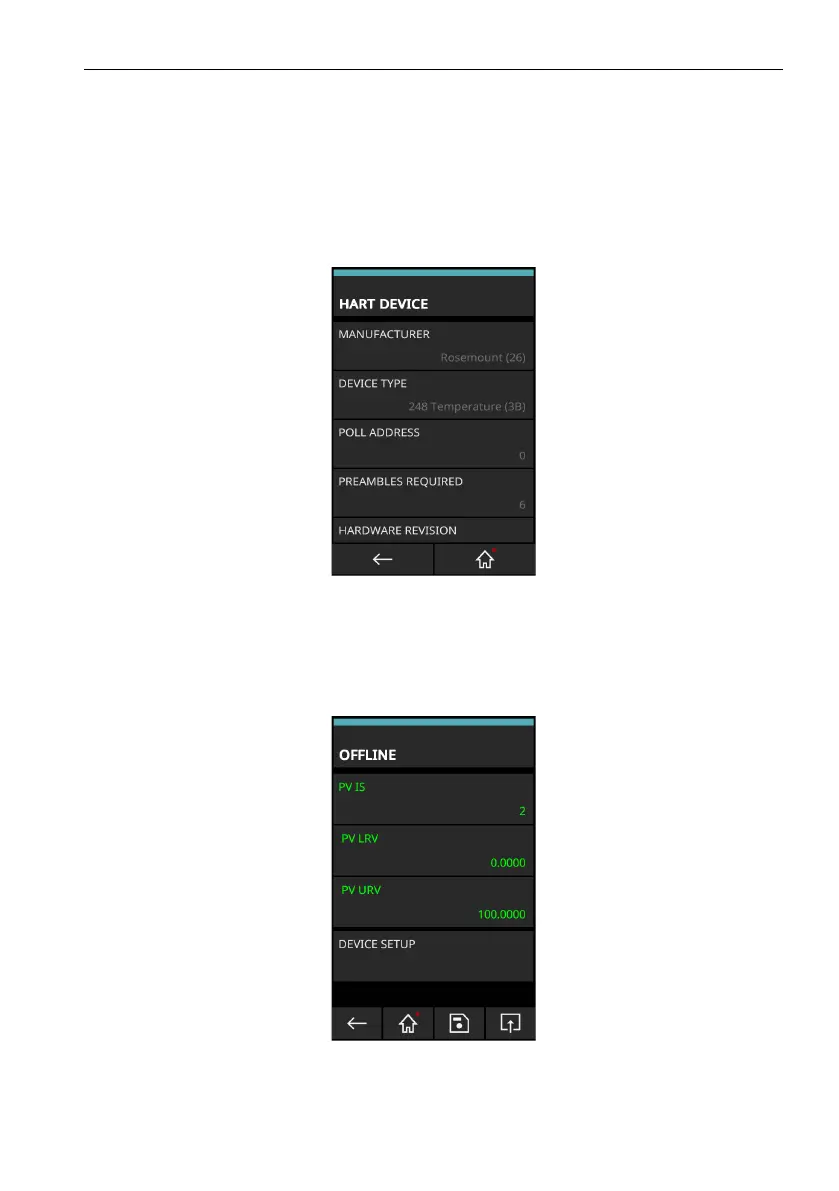

Figure 9-10: HART® Offline – Device Summary
9.5.6 Open Device Configuration
Select the OPEN DEVICE CONFIG from the HART menu to see and change the device setup.
The
device PV (URV and LRV) parameters can be seen and changed.
Note: The options and structure given in the configuration menu, changes from one HART device
to another.
Figure 9-11: HART® Offline – Device Configuration
