English–DPI620G Instruction Manual | 51

Measure DC Voltage

4.2.3 DPI620G-IS Measure DC Volts or DC mV on CH2 (Range ± 30V)

Figure 4-6

shows CH2 set-up to measure a DC voltage (0 to ±30 V) or DC mV (0 to ±2000 mV).

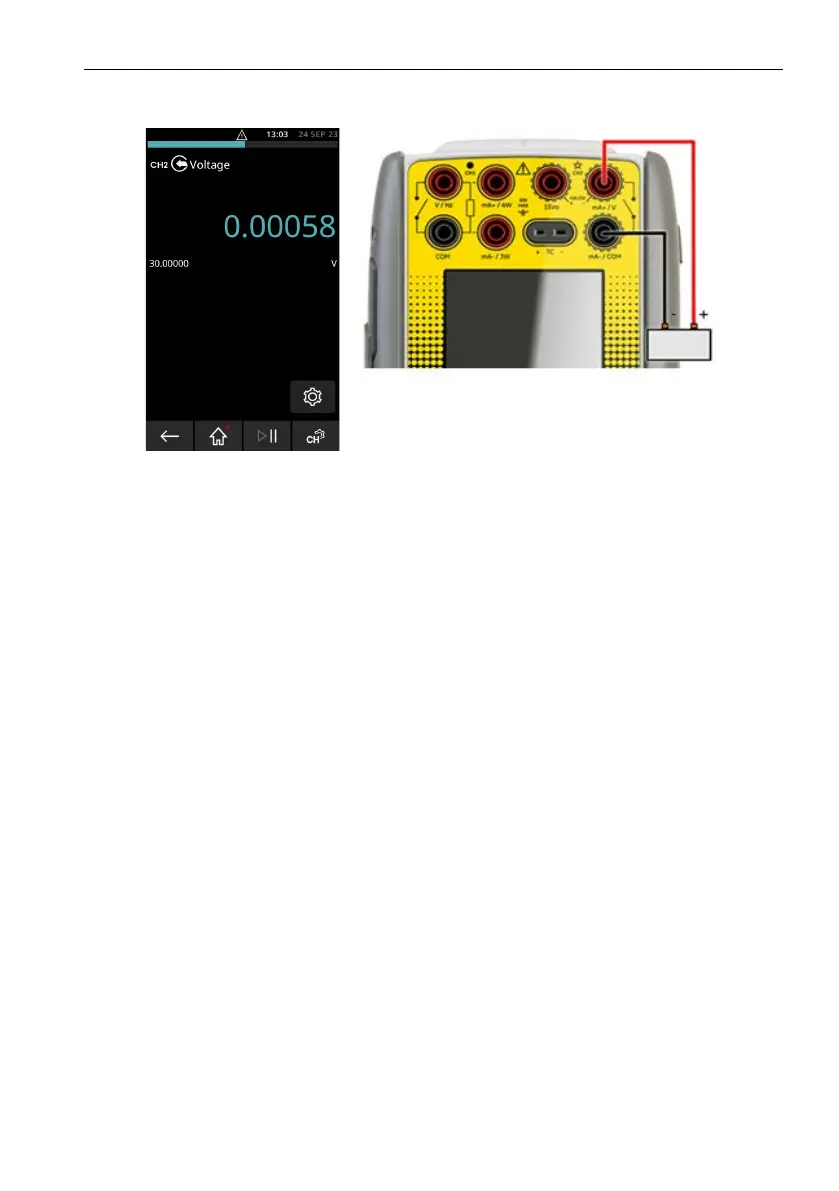

Figure 4-6: Measure DC Volts or DC mV on CH2, Range ±30 V

1. Set the applicable software options: CH2, Measure, Voltage/Millivolts, V/mV.

2. Complete the electrical connections and continue with the measure operation.
