display. Tap the Channel or icon to show or hide the related graph line on the
screen.
To look at a data file configured on the instrument during the initial data log session:
1. Tap the FILENAME icon to display the list of data files.
2. Select the wanted file.
3. Select LOG PLAYBACK.
4. Use the Next icon to move to the next data point and the Previous icon to move
back to the previous data point.

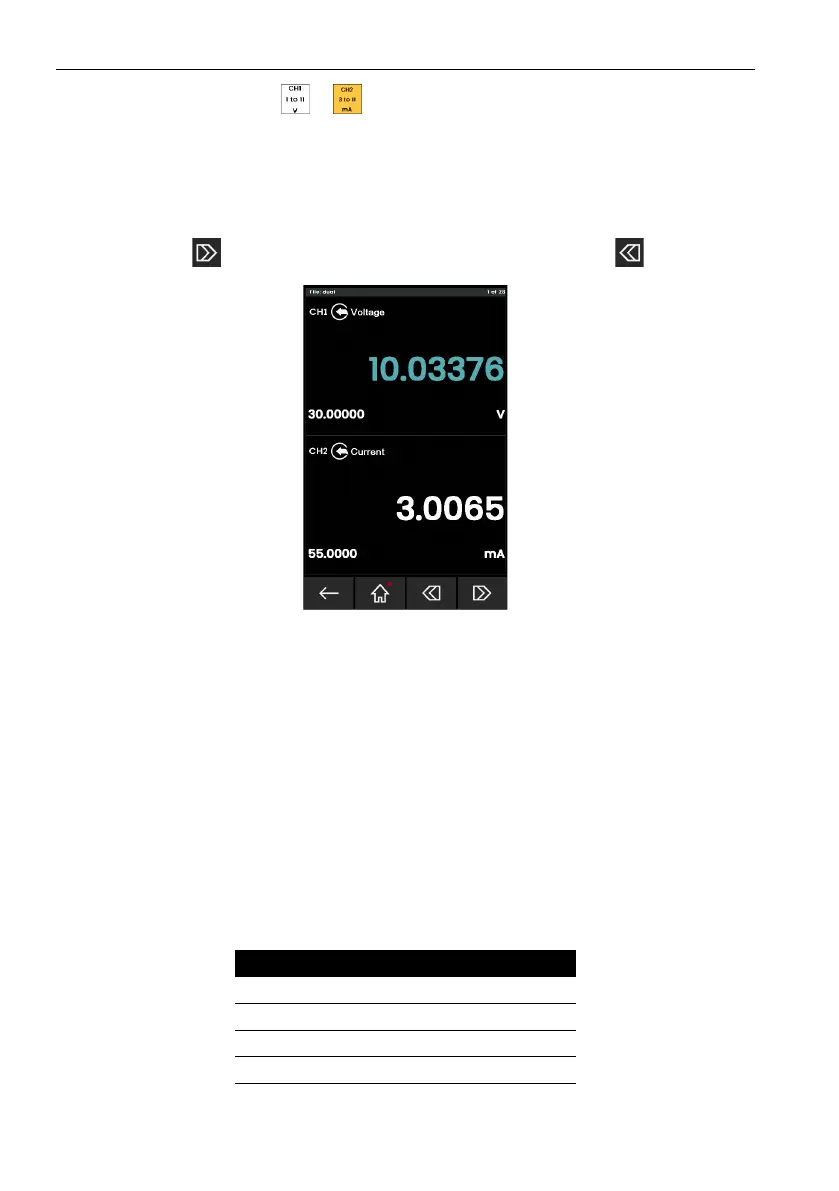

Figure 8-9: Data Log Play Back
8.2.4 Data Log File Management
The data log file management options are as follows:
• TRANSFER
Upload data log files to another device or computer to be processed externally.
• DELETE
Erase data log files.
8.2.4.1 Transfer
Use the following values to move Data:
• USB Flash Drive: Selected files are written in the root folder of the USB Flash Drive.
• SD card: Data logged in an internal storage area can be moved to the SD card storage area.
• USB Serial Port: Moves data as a text file to a computer. A communications program can be
used to receive the data (e.g. Microsoft® Hyper Terminal). The serial Setup is as follows:
Parameter Value
Baud rate: 19,200 bits/sec
Data bits: 8
Parity: none
Stop bits: 1
To Next Page
