Copyright 2013 Baker Hughes Company.
English–DPI620G Instruction Manual | 191
Procedures (CH1): Resistance (Source)
12.10 Procedures (CH1): Resistance (Source)
Use this procedure:
1. Connect the applicable calibration equipment. Refer to Table 12-1.
2. Let the equipment get to a stable temperature (minimum: 5 minutes since the last power on).
3. Use the Calibration menu (see Section 12.1) to do a two-point resistance source calibration
for each of the following ranges:
• Range: 0 - 400Ω
• Range: 400Ω - 2000Ω
• Range: 2kΩ - 4kΩ

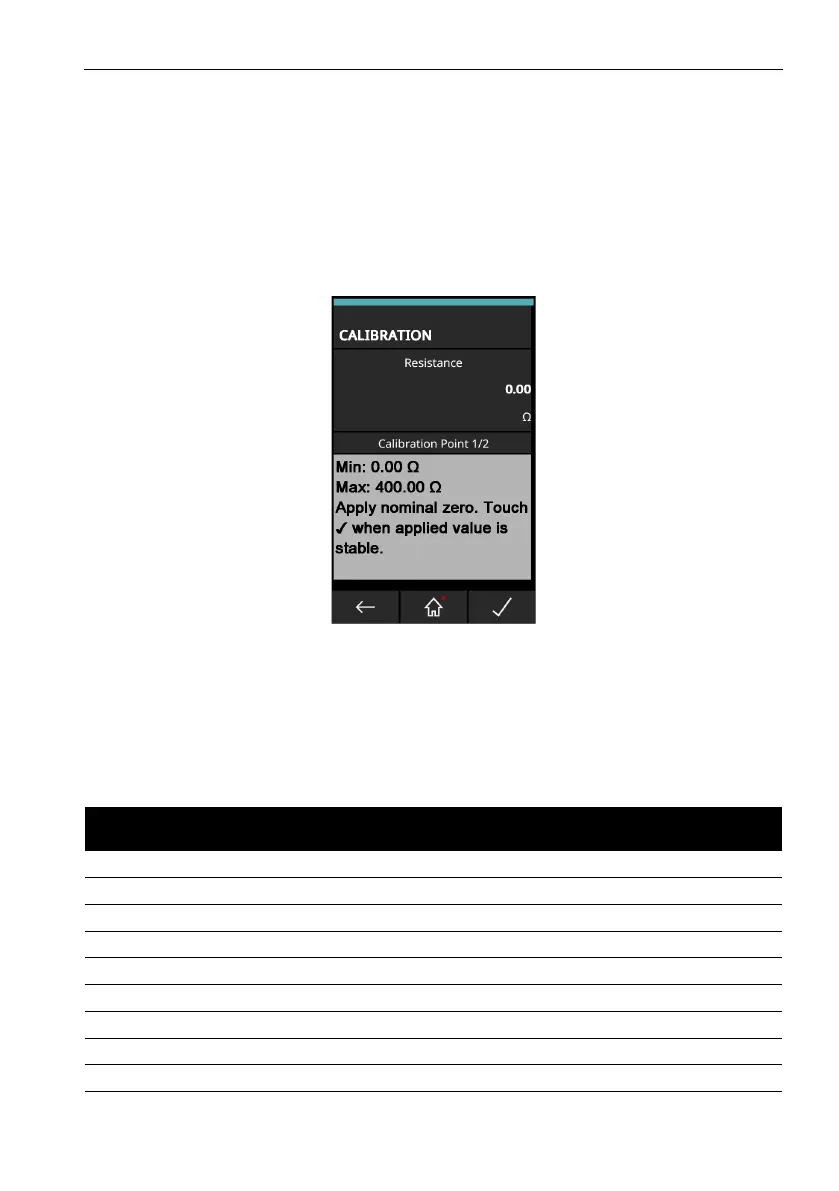

Figure 12-9: Calibration – Resistance Source CH1 (Range: 2000 to 4000Ω)
4. Do a check that the calibration is correct:
a. Select the Resistance (source) function via the Calibrator Task menu.
b. Use the resistance values in Table 12-13 that are applicable to the calibration.
c. Do a check that the error is in the limit range. Refer to Table 12-13.
Table 12-13: Resistance (Source) Error Limits
Ohms (Ω) Excitation (mA)
Calibrator Uncertainty
(Ω)
Permitted DPI620G
Error (Ω)
0 0.1 0.0014 0.014
100 0.1 0.0016 0.038
200 0.1 0.0021 0.062
300 0.1 0.0028 0.086
400 0.1 0.0035 0.110
1000 0.1 0.0080 0.310
2000 0.1 0.0160 0.550
3000 0.1 0.0240 0.860
4000 0.1 0.0320 1.100
