Connect Cables for a Direct-connected VG2
EMC CONFIDENTIAL
Connecting a
VNX5700 or
VNX7500 array
Use Figure 47 to connect the Fibre Channel cables from the blades to the array SPs.
You must use SFPs to connect the ports (see “SFP modules” on page 43):
1. Connect blade 2, slot 0, port 0 to SP A slot 4, port 0 (cable 1 in Figure 47).
2. Connect blade 2, slot 0, port 1 to SP B slot 4, port 0 (cable 2 in Figure 47).
3. For the two-blade VG2, connect blade 3, slot 0, port 0 to SP A slot 4, port 1 (cable 3
in Figure 47).
4. For the two-blade VG2, connect blade 3, slot 0, port 1 to SP B slot 4, port 1 (cable 4
in Figure 47).

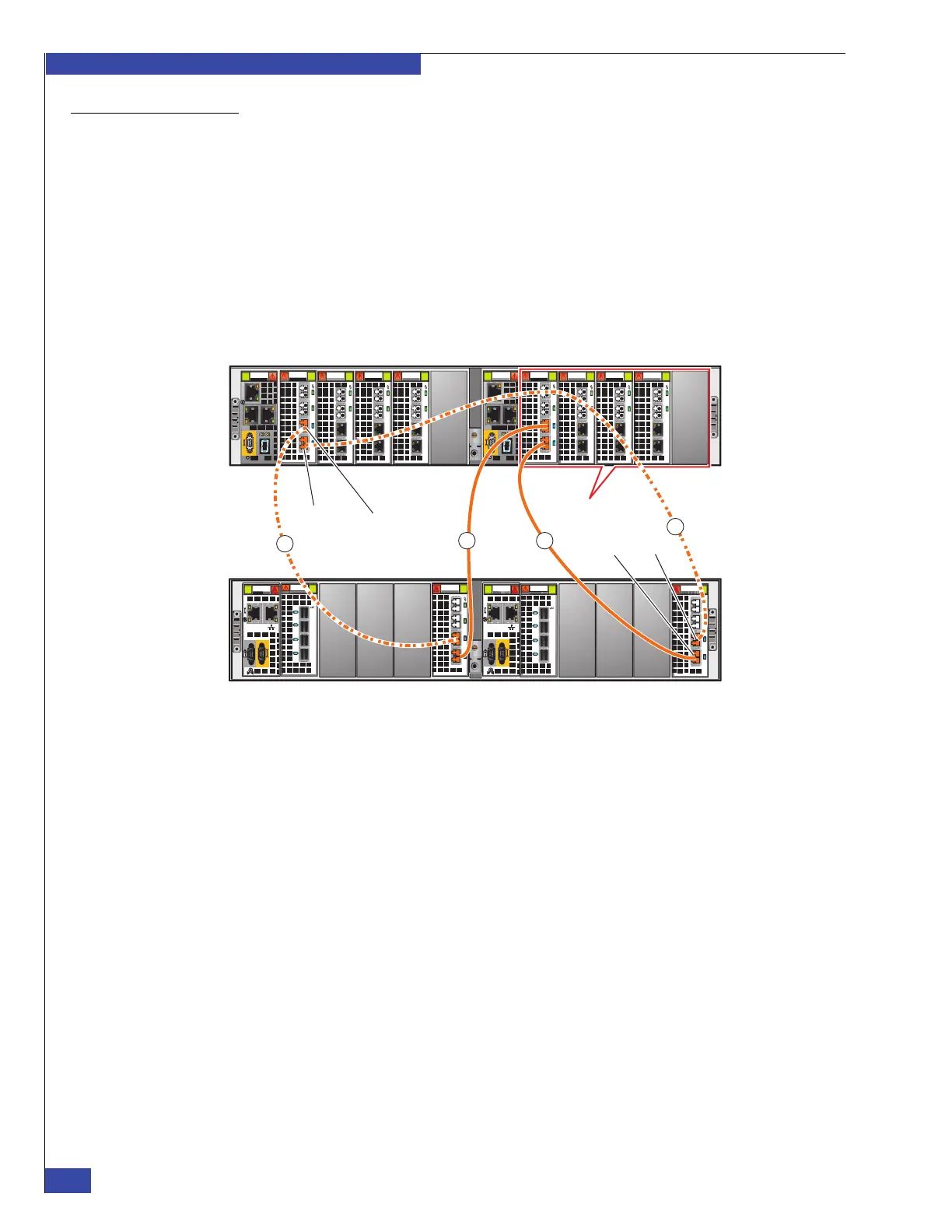

Figure 47 Fibre Channel cables connect VG2 blades to VNX5700/VNX7500 array (example)
