Symbology used in Vector charts
As a user you can familiarise yourself with the used presentation by browsing IHO ECDIS Chart 1, which is included
in this ECDIS. Note that it behaves as any S57 Chart and it follows your selections. See "Control of visible chart
features" on page 120.

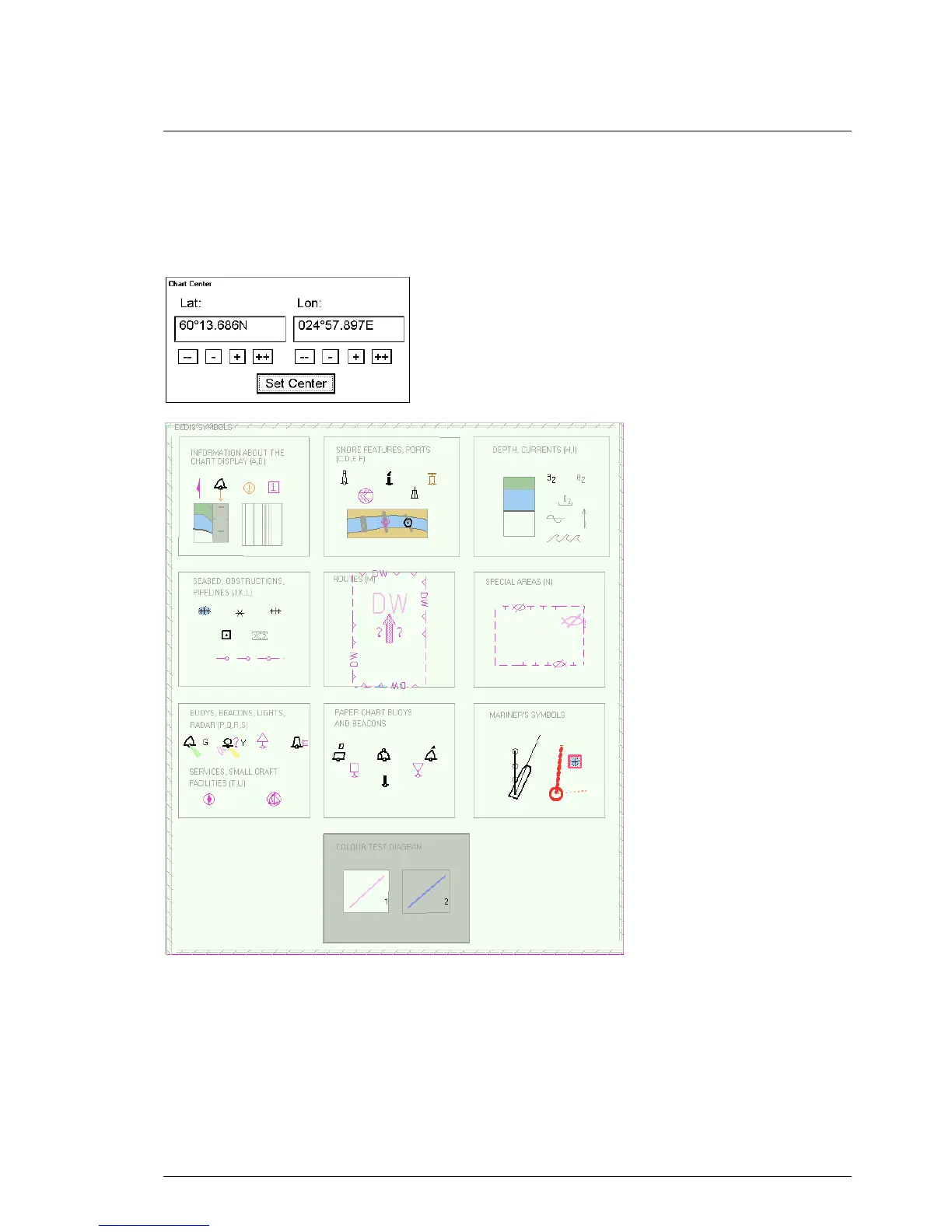

To use IHO ECDIS Chart 1 select ECDIS Chart 1 from the Chart Plan-menu. When you open ECDIS Chart 1, the
Chart Center window appears which allows easy return to the chart position before executing ECDIS Chart 1 by
pressing Set Center button of the Chart Center window.
An appendix contains example plots of used symbology.
How to change presentation library used for Vector chart features
An ECDIS uses official IHO presentation library to draw Vector charts. Used presentation library is replaceable, but
this feature is only intended to be used by qualified service personal and type approval authorities.
When this manual was published the official presentation library was "pslb03_1.dai" known as "Official IHO
presentation library for ECDIS Ed 3 revision 1, Edition: 3.1".
