• User chart control
Last:
Pushing this control user gets last symbol of the file.
>>:
Pushing this control user gets next symbol of the file.
<<:
Pushing this control user gets previous symbol of the file.

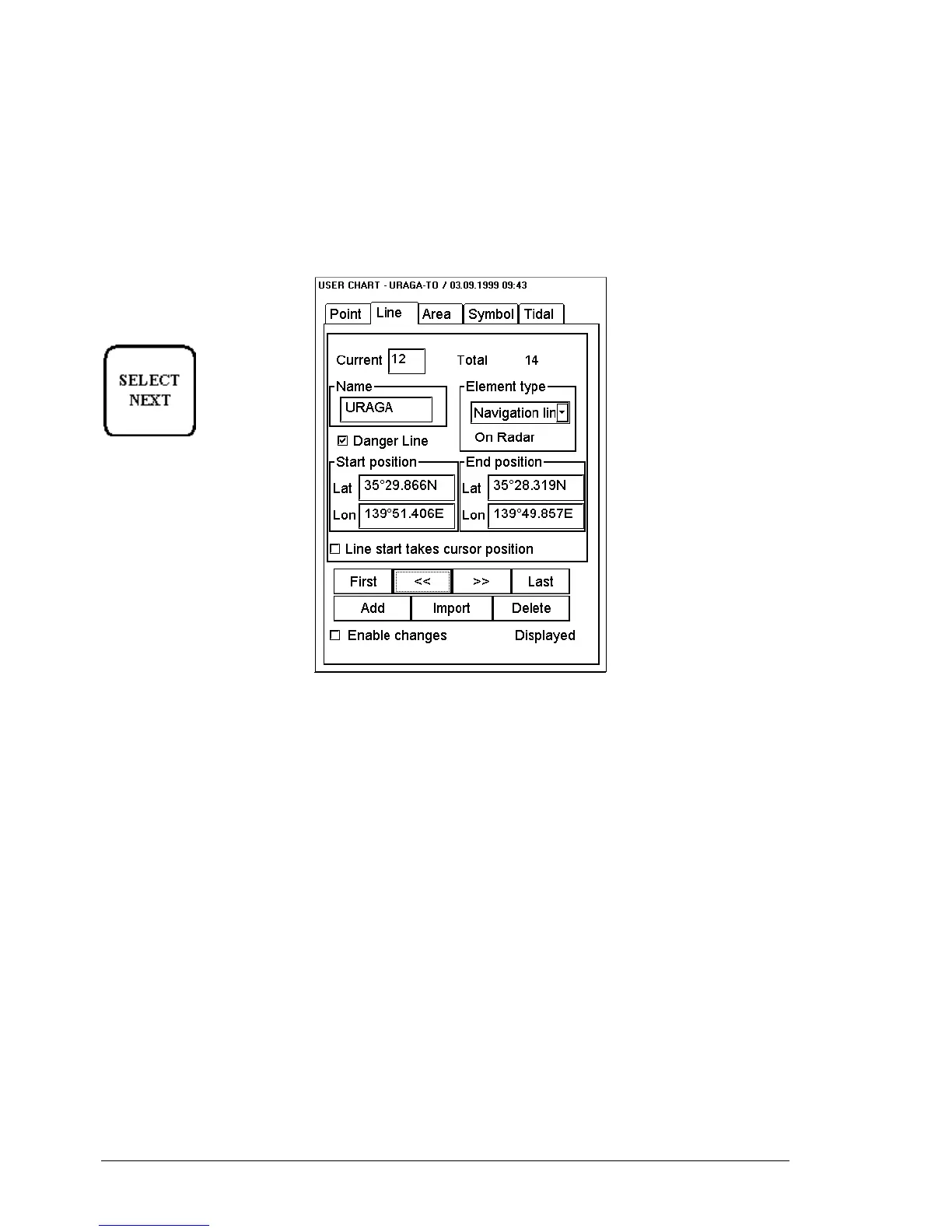

Line sheet
To select between Point,
Symbol, Line, Area and Tidal
sheets to be opened either
press button
or go by cursor above Point,
Symbol, Line , Area or Tidal
text and press SELECT
Enable changes:
User has to select this in order to modify User Chart. When user select Enable changes, User Chart is removed from
the radar(s). When you stop modifying User Chart remove selection Enable changes (or close User chart window),
the system automatically reload the User chart to radar(s)
Current:
It is indicated number of current line in this field. User can select line by editing desired number to edit box or
create new one.
Total:
Total indicates total number of lines.
Name:
User can give name to current line.
Element type:
User can choose appropriate line type from combo box. Available types are:
• Navigation line
• Route line
• Depth contour
• Coast line
Navigation and Route lines are part of lines displayable also on ARPA radar screen. Depth contours and Coast lines
are visible only on ECDIS screen.
Danger Line:
User can select if the line is part of Chart Alarm calculation.
Start lat:
User is able to enter to edit box latitude of line’s starting point.
