Raster Chart material •
••
• 179
How to select an ARCS chart by its number on display
Open ARCS chart manual

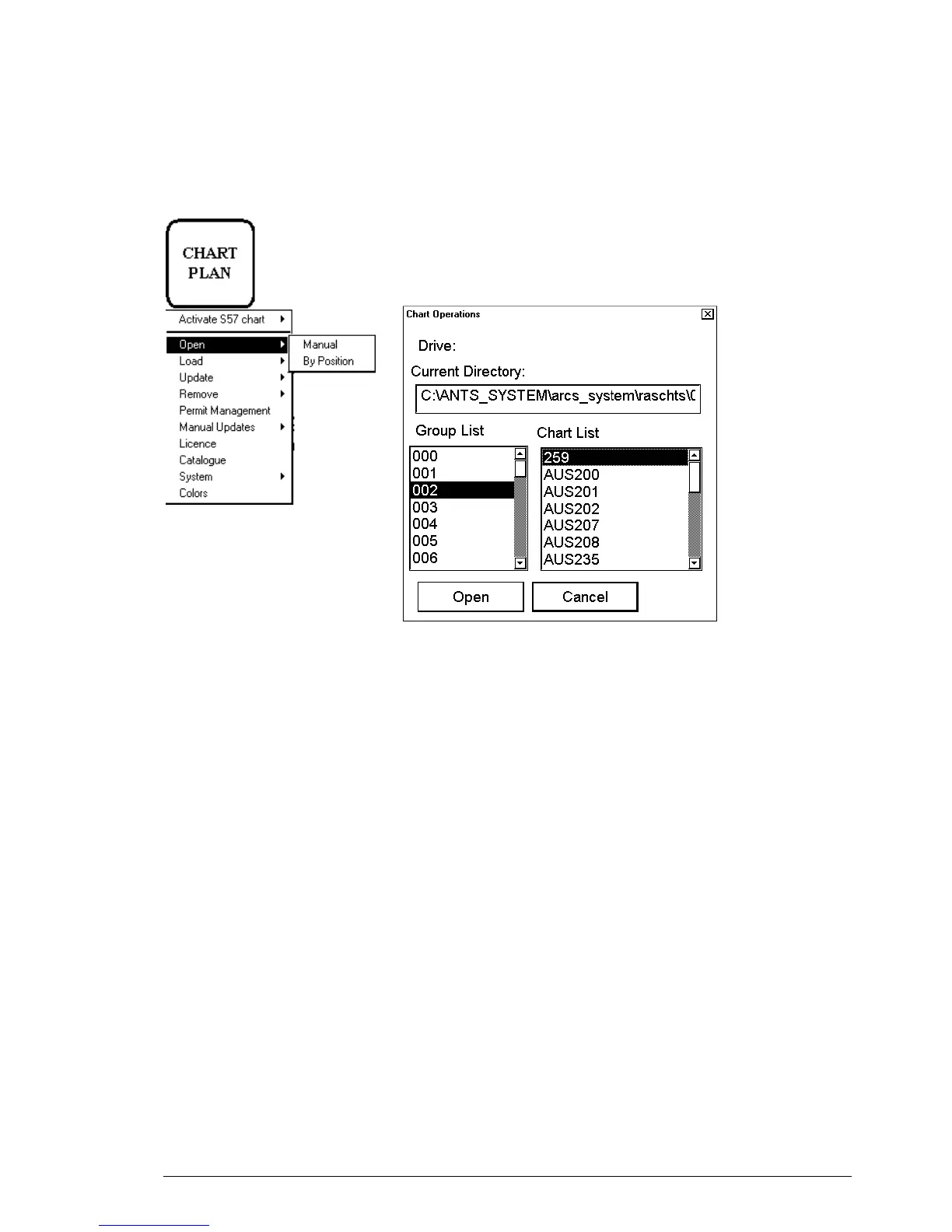

To select a specific ARCS format raster chart onto the display use Open
menu command. Proceed as follows:
1. From Control Panel press CHART PLAN push button.
2. From menu check that there is a following text in first line: Activate S57
chart. If it is, then go to step 4.
3. If there is text Activate ARCS chart choose this command.
4. Select Open from the menu and manual from sub menu
5. Choose desired chart from chart list dialog and press
Open
.
6. When you select a chart it will be displayed automatically in the Electronic
chart area.
