ECDIS Screen •
••
• 29

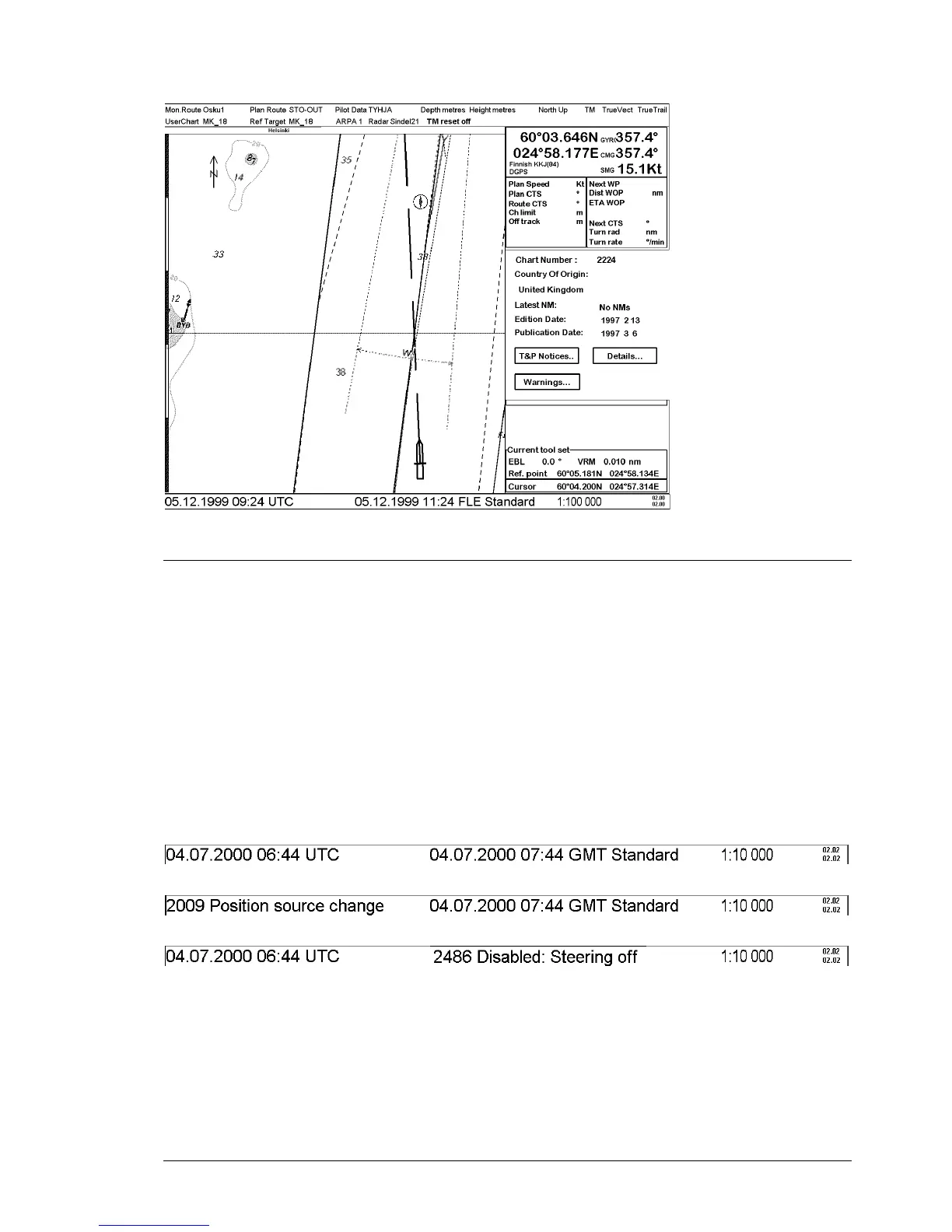

Note indication of TM RESET OFF.
Lower statusbar
The data displayed in lower statusbar includes the following listed from left to right:
UTC time
Co-ordinated Universal Time. The UTC time indicates time on Greenwich Meridian.
Local time zone
User can select local time zone to be displayed in this field.
Scale
Scale of displayed chart is shown in this field.
Software release
Current software release is shown here. Upper value is software release of the ECDIS chart. Lower value is
software release of the ECDIS navigation interface.
Alarms:
Alarms generated by the system (replace UTC time) and by the steering (replace local time) is shown in lower status
bar.
Lower status bar in normal operation.
Lower status bar, when the system has generated an alarm.
Lower status bar, when the steering has generated an alarm.
