336 •
••
• Radar Echo Overlay

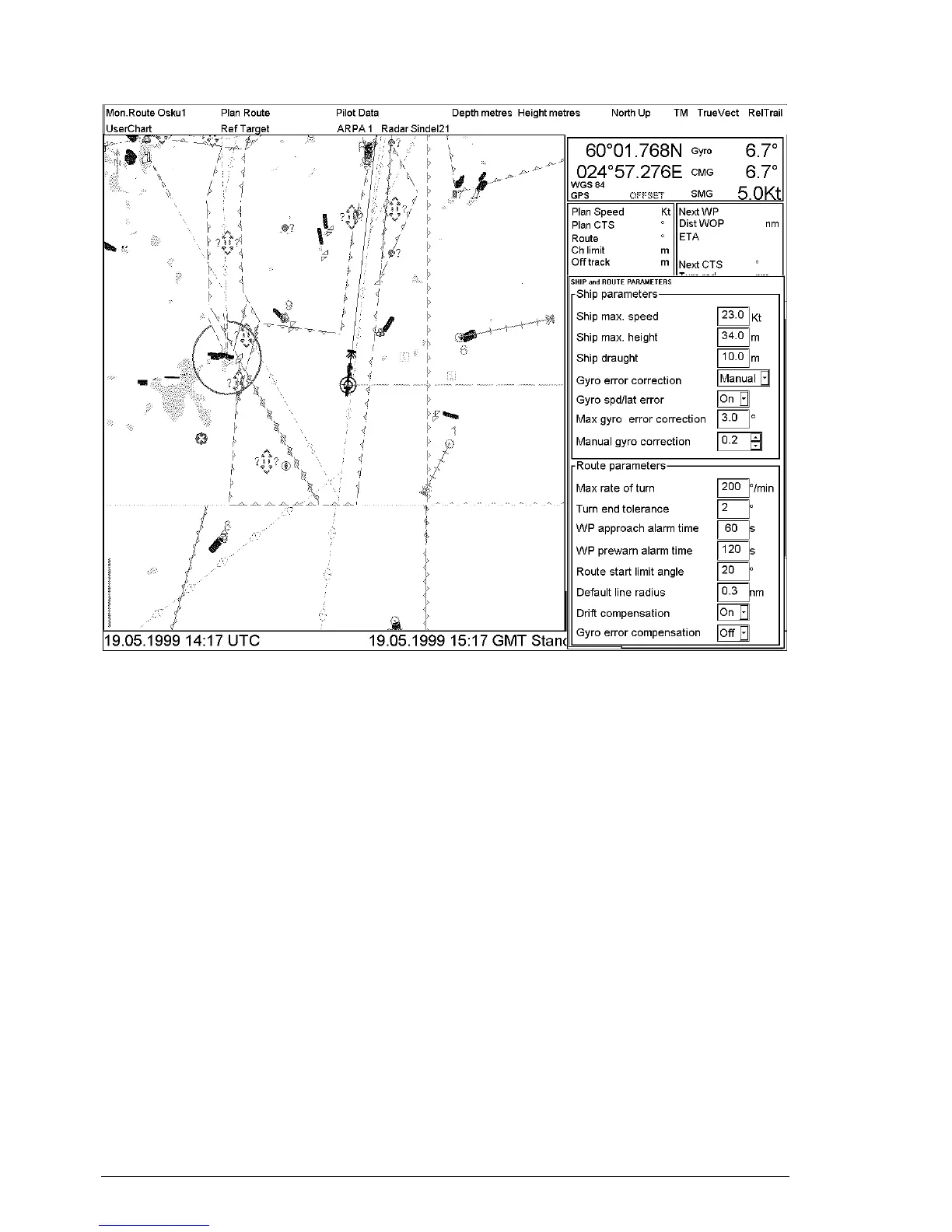

Manual gyro correction in use
Note!
ARPA targets and radar echo overlay match perfectly.
Chart features and radar echo overlay match perfectly.
How to adjust position error
How to verify position and align it if required
See chapter "Position alignment by means of ECDIS".
How to verify correct datum used in positioning
It is very important that output co-ordinates of position device is the same as the ECDIS expects to receive,
otherwise there is a risk that you have incorrect position in the ECDIS. Verify in position device configurations that
output of co-ordinates is WGS84 and also in installation parameters in the ECDIS is set to receive position in
WGS84 datum.
