How to plan a speed profile
A speed profile is defined by general max. speed and optimize types. These values are given while planning a route.
You can give Speed limit and optimize type in Parameters sheet and in waypoint sheet you can give min. and max.
speed for each leg. The picture shown below demonstrates what influences have different optimize types and speed
limits for a speed profile.
max speed (general) 17
wp min speed cost profit time
table
max
_speed
max speed
1 4 4,8 10,0 10,0 10 10
2 4 4,8 12,9 15,0 15 15
3 4 4,8 12,9 16,2 17 20
4 4 4,8 12,9 16,2 17 20
4 4 4,8 12,9 16,2 17 20
5 6 6,0 12,9 15,0 15 15
6 6 6,0 12,9 16,2 17 20
7 4 4,8 12,9 16,2 17 20
8 4 4,8 12,9 16,2 17 20
9 6 6,0 12,9 16,2 17 17
10 4 4,8 8,0 8,0 8 8

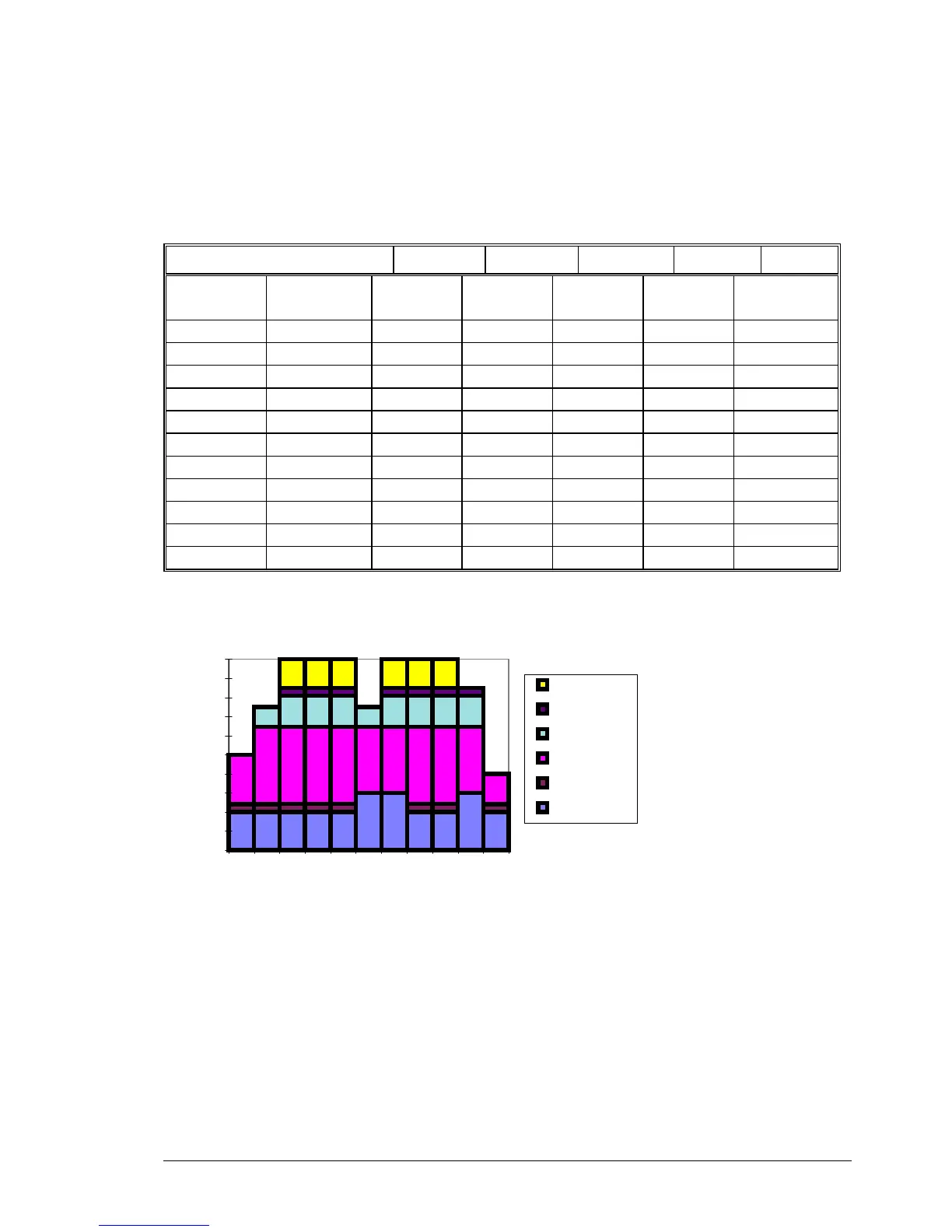

An Exsample of speed profile
0
2
4
6
8
10
12
14
16
18
20
1234567891011
Waypoint
Speed [Kn]
max speed
max_speed
timetable
profit
cost
min speed
