256 •
••

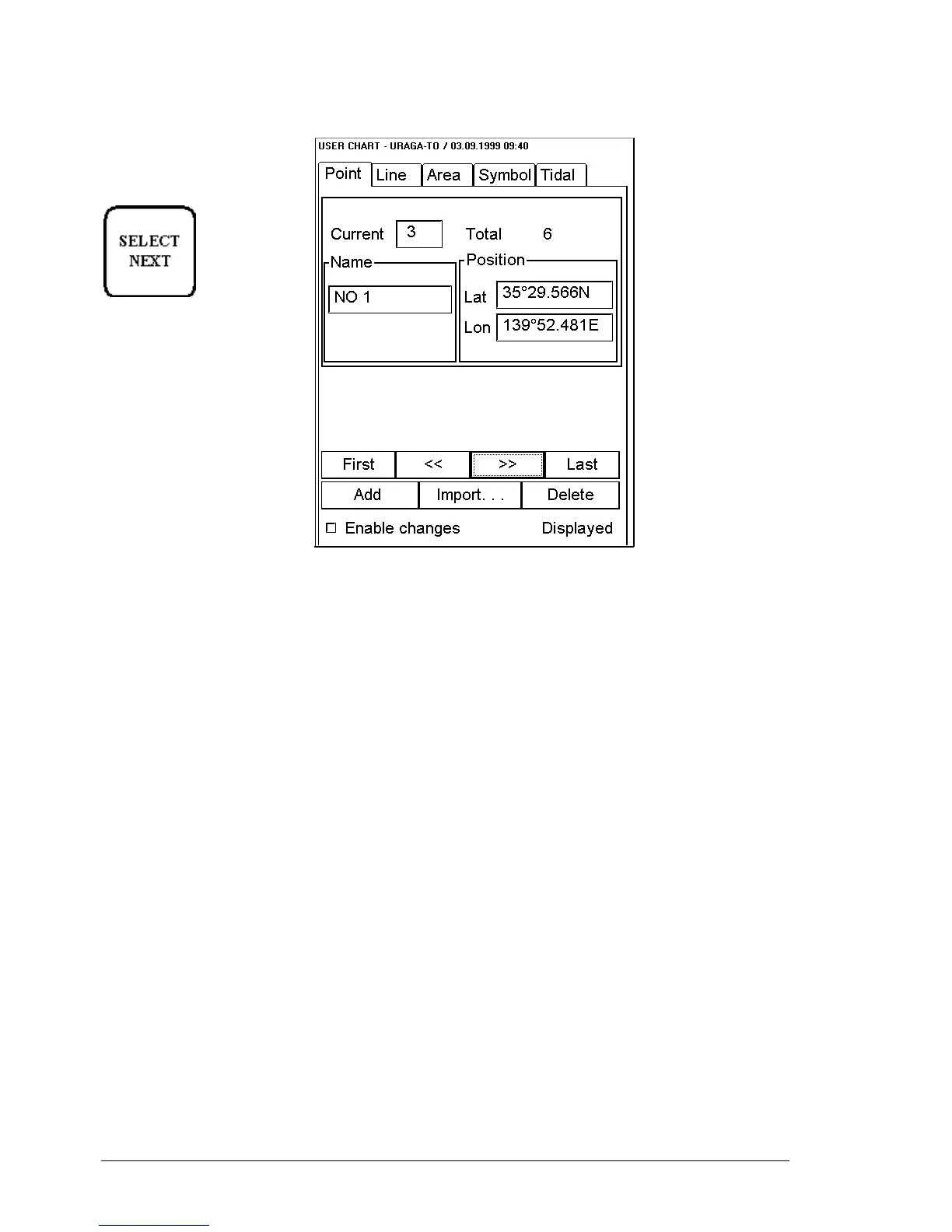

• User chart control
Point sheet
To select between Point,
Symbol, Line,, Area and Tidal
sheets to be opened either
press button
or go by cursor above Point,
Symbol, Line, Area or Tidal
text and press SELECT
Enable changes:
User has to select this in order to modify User Chart. When user select Enable changes, User Chart is removed from
the radar(s). When you stop modifying User Chart remove selection Enable changes (or close User chart window),
the system automatically reload the User chart to radar(s)
Current:
It is indicated number of current Point in this field. They are collection points for sub charts. User can select Point
by editing desired number to edit box or create new one.
Total:
Total indicates total number of Points.
Name:
User can give name to current point.
Lat:
User is able to enter to edit box latitude of Point.
Lon:
User is able to enter to edit box longitude of Point.
Add:
This function adds new record next to current record. User can either edit position by entering new co-ordinates or
by showing new location with the trackball and select pushbutton inside the Electronic chart area.
Delete:
This function deletes current record of Point.
Import:
User is able to select from the list a file to import into current Point file.
First:
Pushing this control user gets first point of the file.
Last:
Pushing this control user gets last point of the file.
>>:
Pushing this control user gets next point of the file.
<<:
Pushing this control user gets previous point of the file.
