Steering with EMRI Trackpilot •

••

• 367

Automatic Route steering

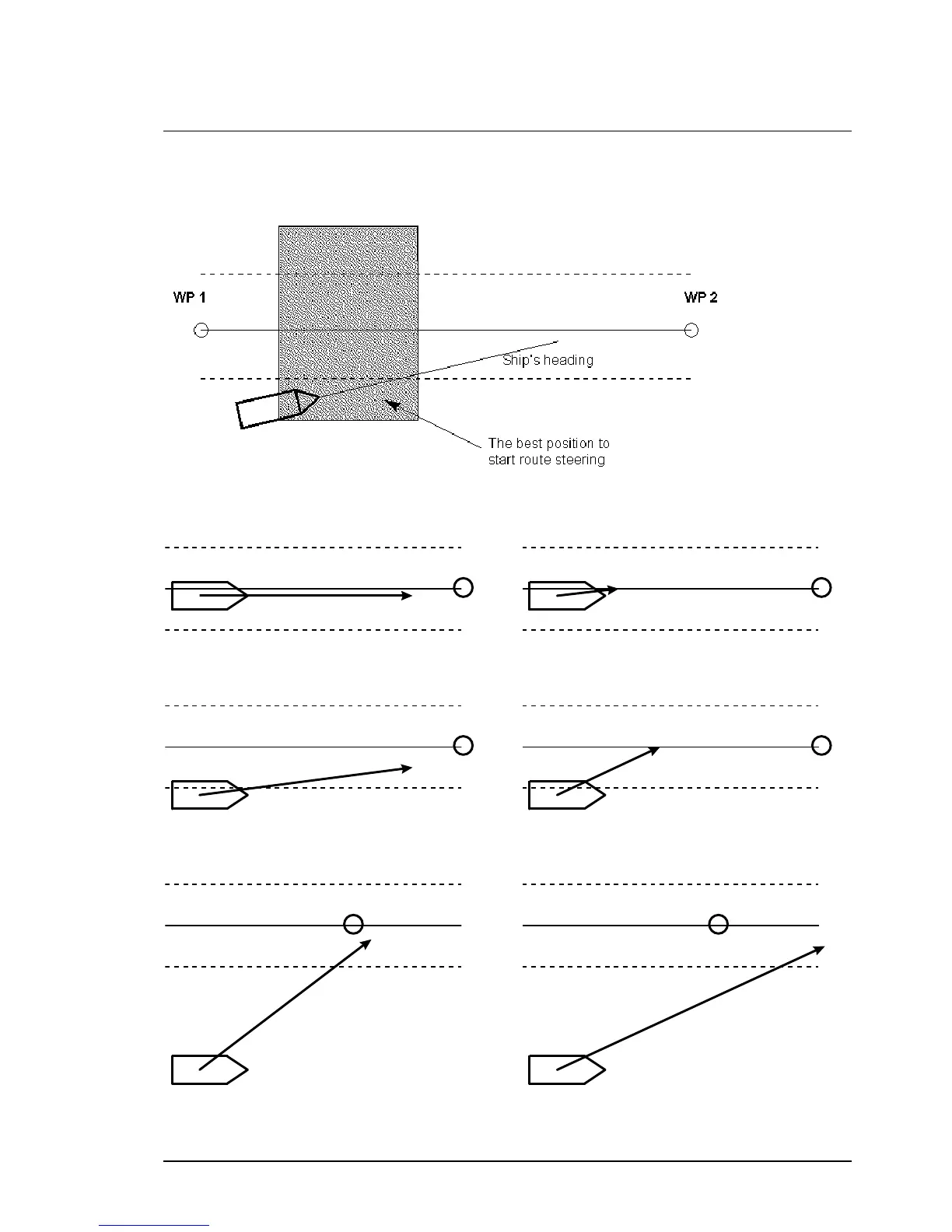

In automatic route steering you can use either Go to Waypoint mode or Go to Track mode. See figures below to

find the best position to activate automatic route steering and differences between Go to waypoint and Go to track

modes.

The position of own ship when activating automatic route steering

WP WP

“Go to Waypoint”

“Go to Track”

Pictures above demonstrate how “Go to waypoint” differs from “Go to track”. NOTE For an off track error of more than 100

metes the "Go to Track" saturates and cannot increase the approach angle towards the center line of the route.
