• Steering with EMRI Trackpilot

How to use the Predictor

Predictor is a tool to estimate own ship future positions and behaviour. It is available on CHART DISPLAY. It

consist of 1 piece of own ships drawn in true scale to successive future positions. The time between future own ship

position is 30 seconds.

The predictor is calculated using current:

• docking speed components:

• transversal bow speed

• transversal stern speed

• longitudinal center speed

• rate of turn

These components are assumed to be stable during prediction period.

The predictor can be used in every steering-state, even when steering without Trackpilot.

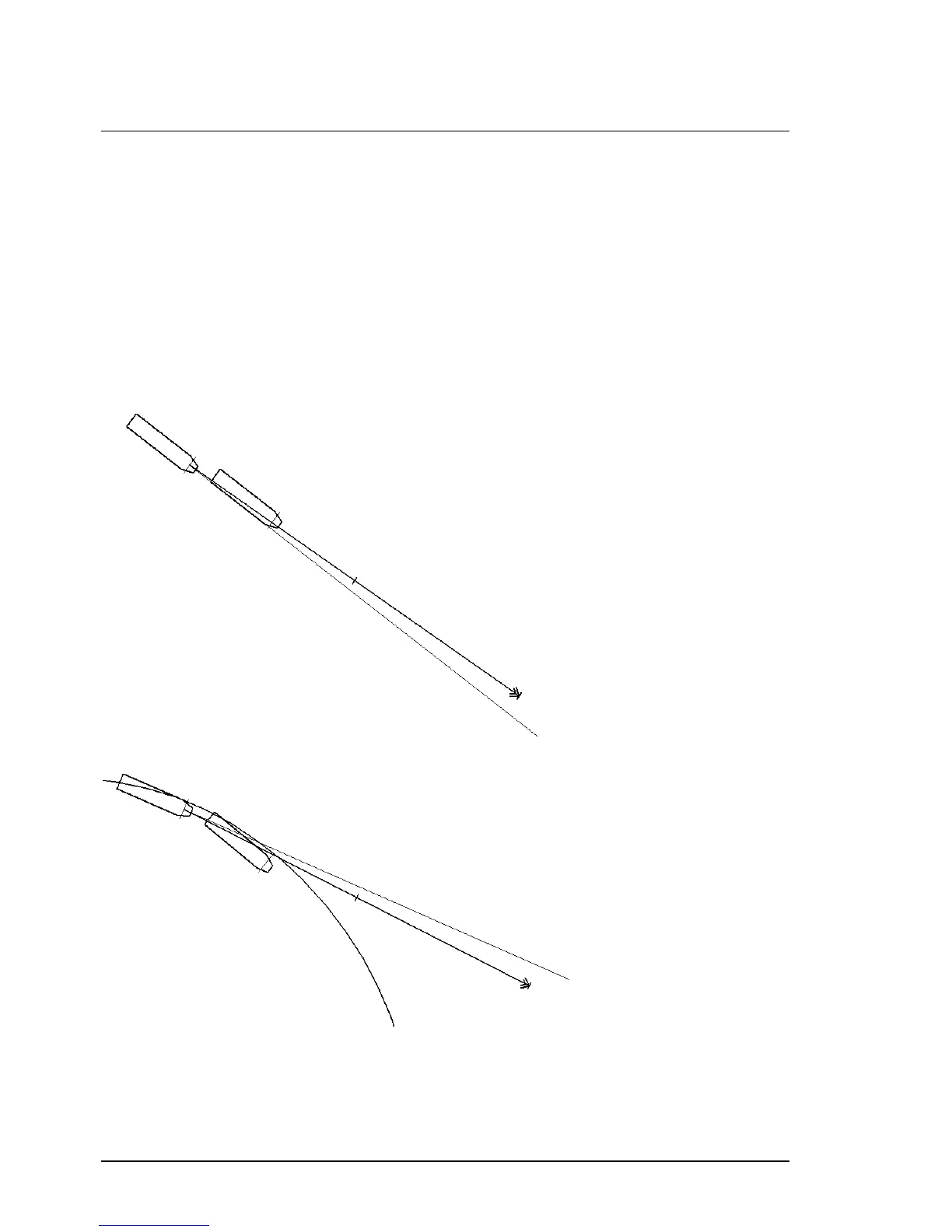

Predictor shows drift.

Predictor in a turn.
