Recording functions •

••

• 347

Alarms log

An Alarm's log is used to collect and record alarms generated by the system. User is able to view list of generated

alarms using alarm log viewing program.

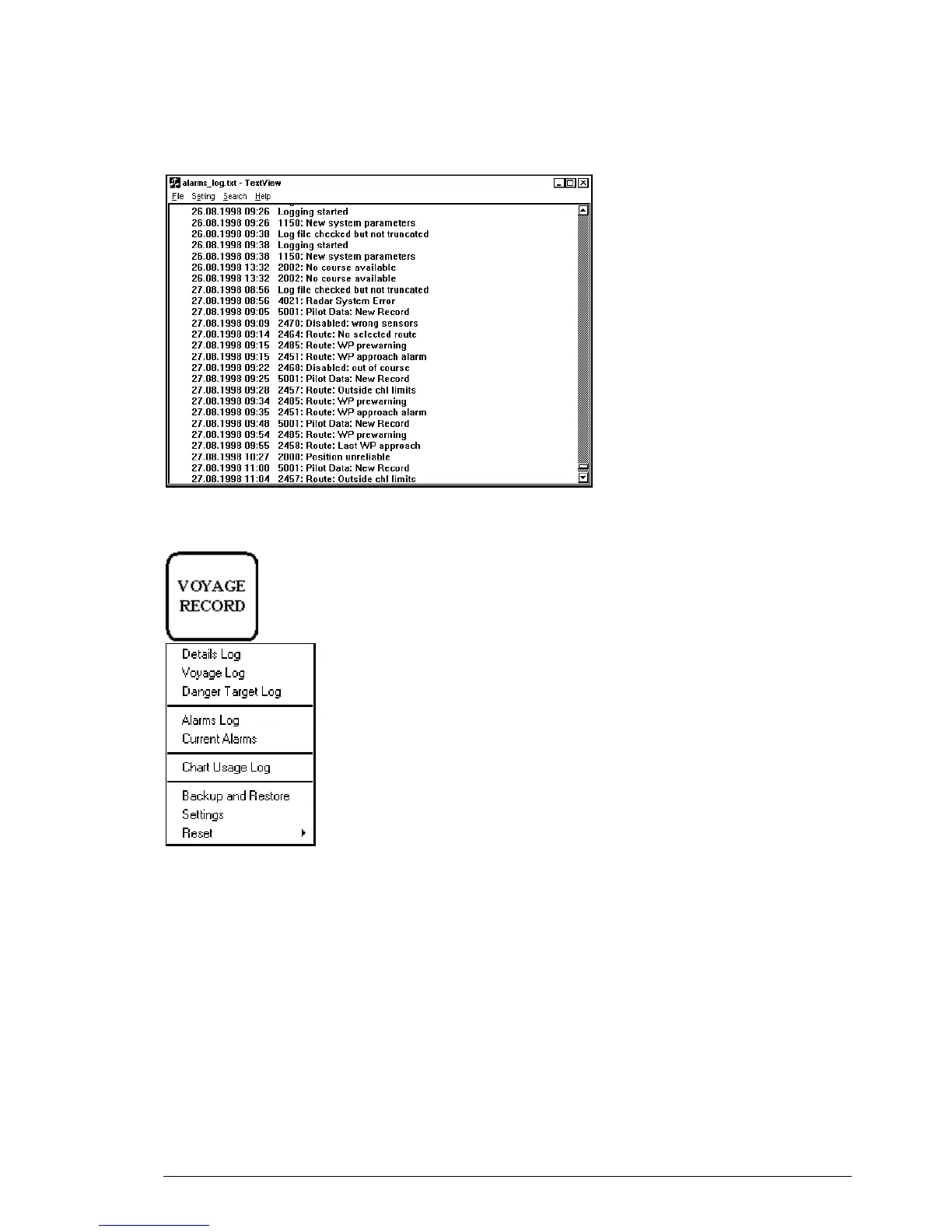

Possible view of latest alarm. A time and date, number of alarm and explanation are listed in Latest alarm log.

To open log, proceed as followed:

1. Press VOYAGE RECORD button.

2. Select Alarms Log from the menu

3. The system will start viewing program of log.

4. User is able to print log.

How to print Latest Alarm

1. Press VOYAGE RECORD button.

2. Select Alarms Log from the menu

3. The system will start viewing program of log.

4. Select Print From the File menu. A print dialog box appears, press OK.

Default Chapter4
