• Route monitoring
Display of the route on the electronic chart screen

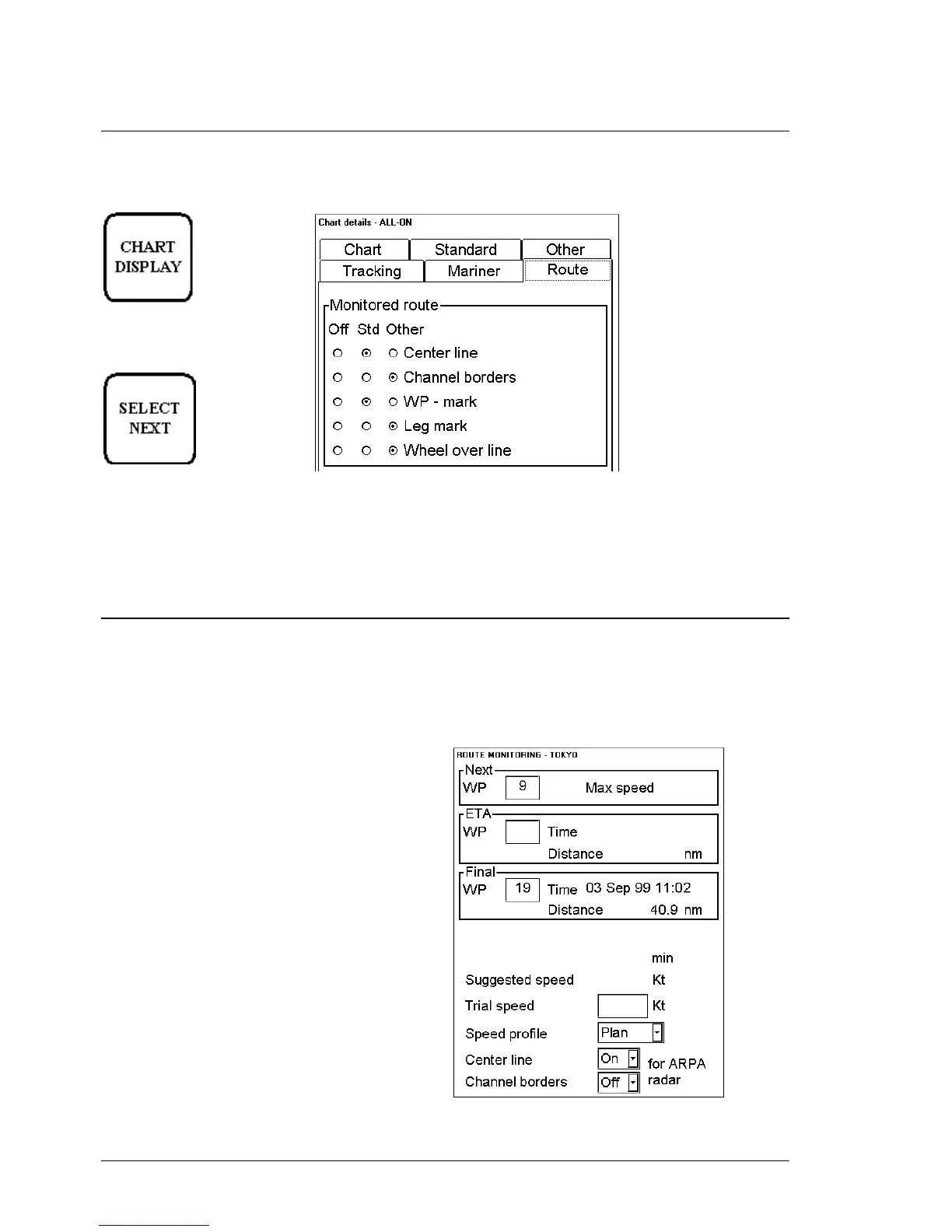

To get monitored route to be displayed, make sure that desired options of the monitored route (Center Line, Channel
Borders, Wp-marks, Leg marks and Wheel over line) are selected on the ROUTE -sheet.
Press CHART DISPLAY push
button. To select ROUTE
sheet to be opened either
press button
or go by cursor above
ROUTE text and press
SELECT.
Wp-marks enables display of waypoint's number in a route.
Leg marks enable display of planned speed and planned Course to Steer in a route.
Wheel over line enables display of line, which turn start line for a waypoint. This line appears when "WP approach"
has given and disappears when turning has started.
Display of the route on the ARPA radar screen
ECDIS can control visibility of the monitored route on the ARPA radar screen in some selected ARPA radars such
as Selesmar and Furuno. Some ARPA radars such as Furuno have this kind of controls also in the ARPA radar
operators panel.
Note that generic ARPA radars of IEC 61162-1 type of interface cannot display monitored route on their screen.
Then these controls are not available on the ECDIS screen.
Center Line:
You can switch on/off center line to be displayed on the
radar screens.
Channel Borders:
You can switch on/off channel borders to be displayed
on the radar screens.
