Colour Calibration •
••
• 359
Grey Scale test
Set Brilliance and Contrast to calibrated positions. Use Grey Scale to visually inspect neutral shades of grey.
Note, during Selftest the ECDIS is unable to do any navigation related things and as an indication the System Failure
is activated in the Control Panel.
To activate grey scale test proceed as follows:

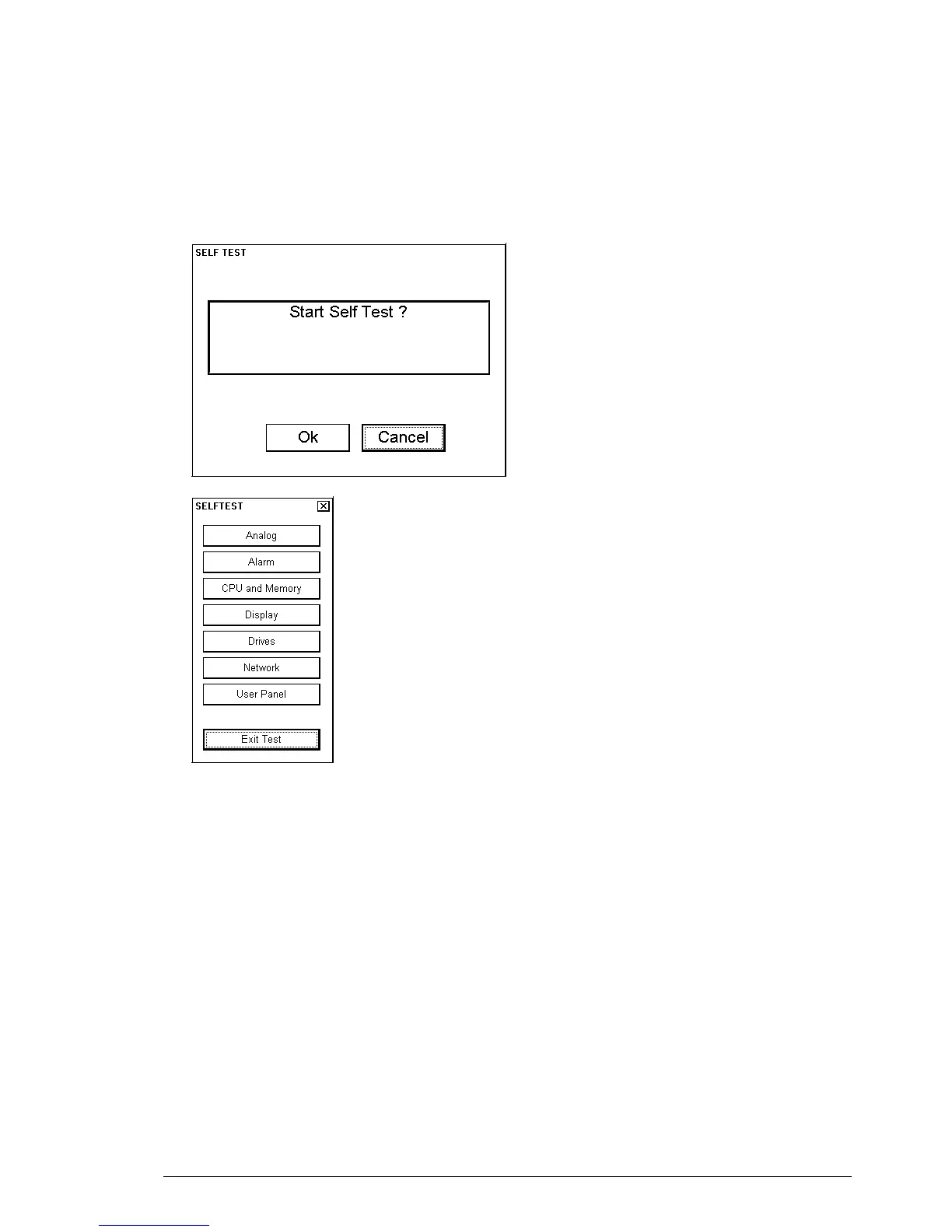

1. Press INITIAL SETTING button and select Selftest from the menu.
2. Confirm starting Selftest, press OK.
3. The system will end normal operating and start a Selftest module.
4. Execute Display of Selftest pressing soft key button.
To Next Page
