Raster Chart material •
••
• 185
Control of visible navigation features
Visibility control of the navigation features is divided into three sheets. Sheet Route controls Planned and monitored
route. Sheet Tracking control past tracks and some other features. Sheet Mariner control Pilot data, User charts and
Chart alarms. Press CHART DISPLAY button to open Chart details window. Use SELECT NEXT to open desired
sheet in Chart details window.
User can define settings for chart details which are displayed over ARCS charts. This means that user can select
different layers to be Off, Std or Other. Selection of Off is self explanatory. Selection of Std is set as visible, if the
STANDARD DISPLAY button is pressed. Selection of Other is set as invisible, if the STANDARD DISPLAY
button is pressed
Monitored and
planned routes are
non-chart
information. All the
selected items are
shown on top of
chart data

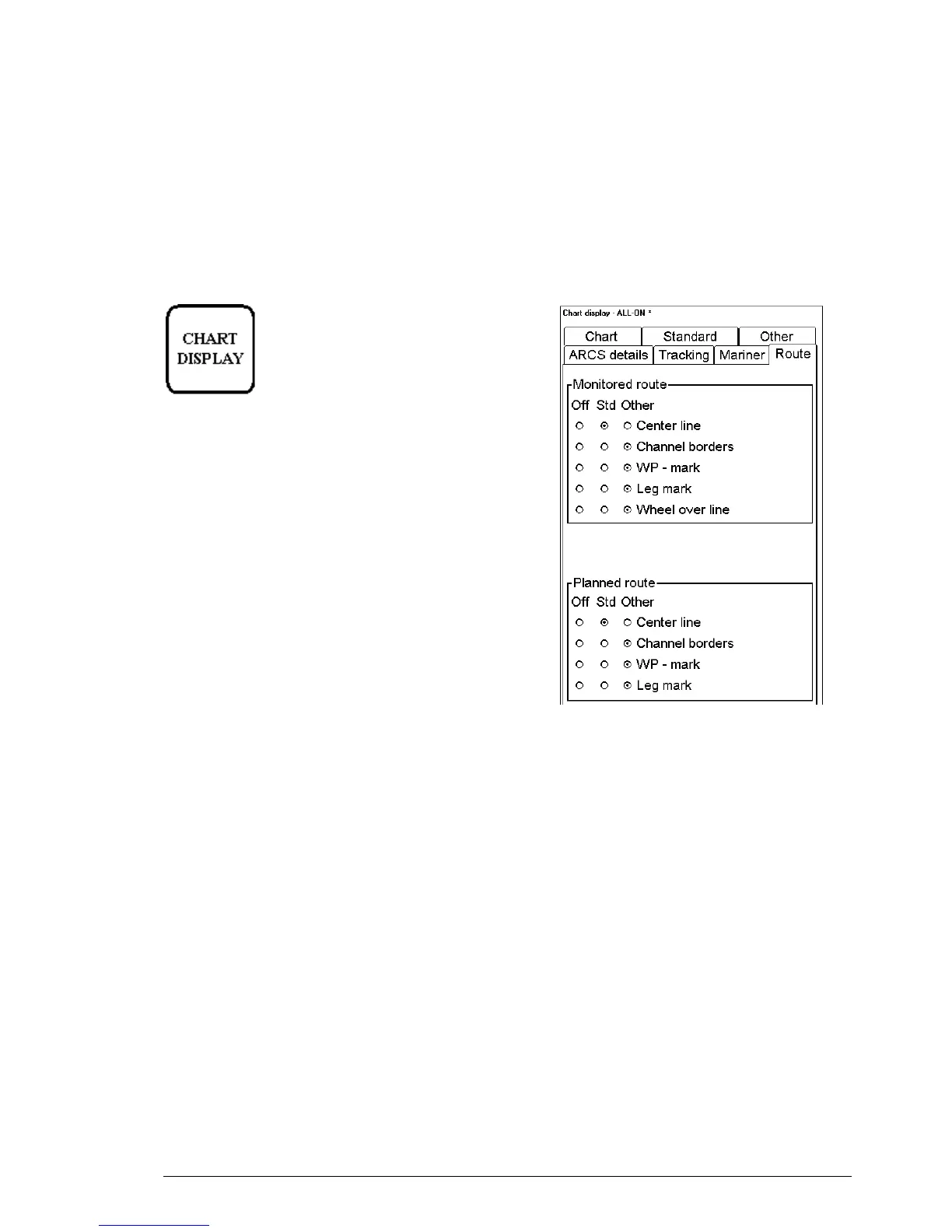

"ROUTE" sheet
Sheet ROUTE contain selection of route
related navigation features
Monitored route, user can select which part of monitored route is displayed.
Planned route, user can select which part of planned route is displayed.
