Appendix 3 •
••
• 453
How to select active group for viewing with catalog
To select active group proceed as follows:
1. Press CHART PLAN push button. Select Catalog from the menu.

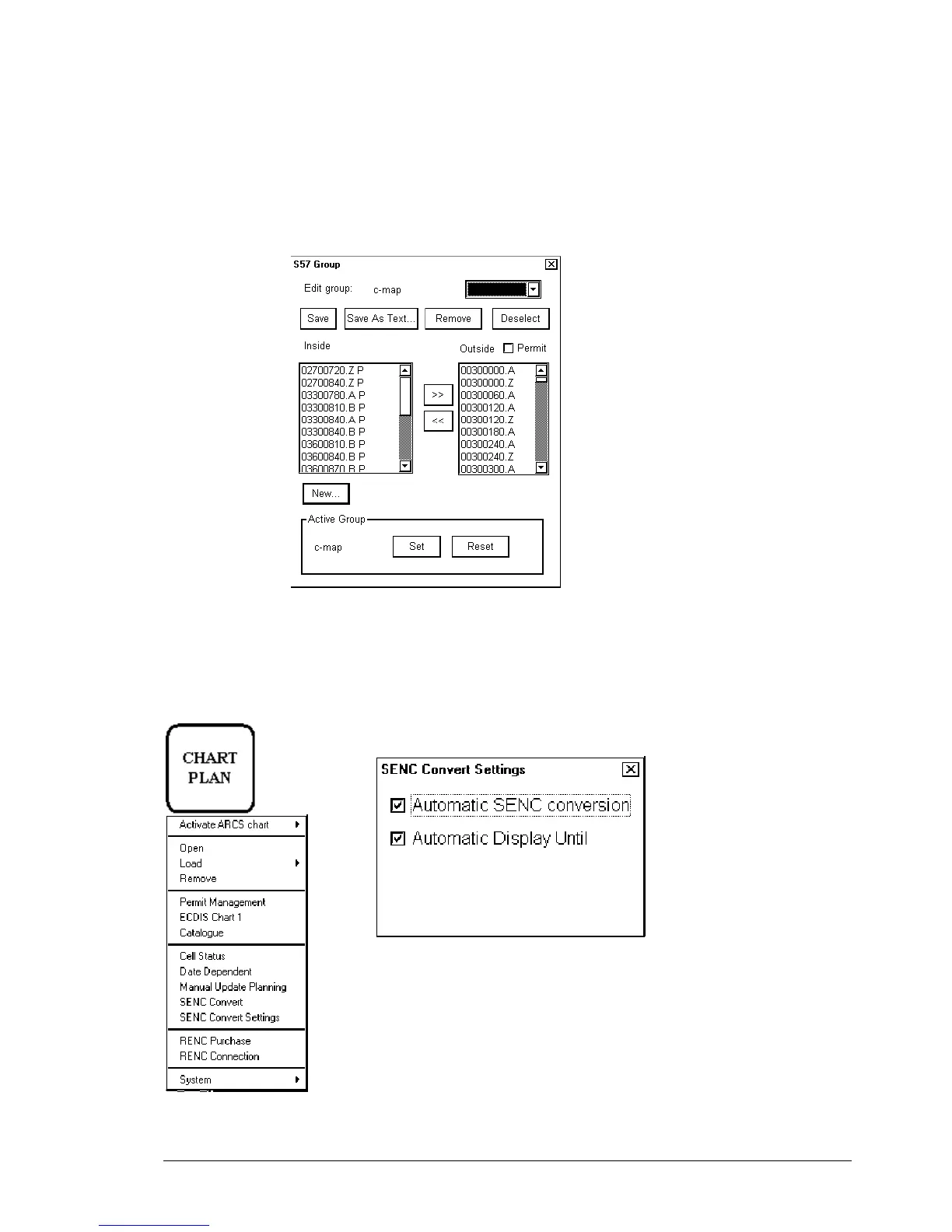

2. Press Groups... button in S57 Catalog dialog box. A Chart group dialog box appears.
3. Select desired group from Edit group list box.
4. In Active Group -field press Set button. The name of active group appears to Active Group -
field.
How to make conversion into SENC and set display date
automatically with C-MAP charts
When you are loading new C-MAP charts into hard disk, it is possible make automatic conversion into the SENC
format. It is also possible to set display date as system's current date automatically. Proceed as follows to set these
options:
1. Press CHART PLAN button, select SENC Convert Settings from the menu.
2. A S57 Settings dialog box appears:
Select on Automatic SENC Conversion and Automatic Display Until options.
To Next Page
