6–2–4 Escutcheon Front Door (FRU No. 107)
Time Required
1 Minute
Tool Required
Not necessary
Procedure
Refer to ILLUSTRATION 6–20.
1. Turn OFF the system.
2. Pull out the Escutcheon Front Door (FRU 107) from the Escutcheon Assy (FRU 102) as shown in
ILLUSTRATION 6–20.

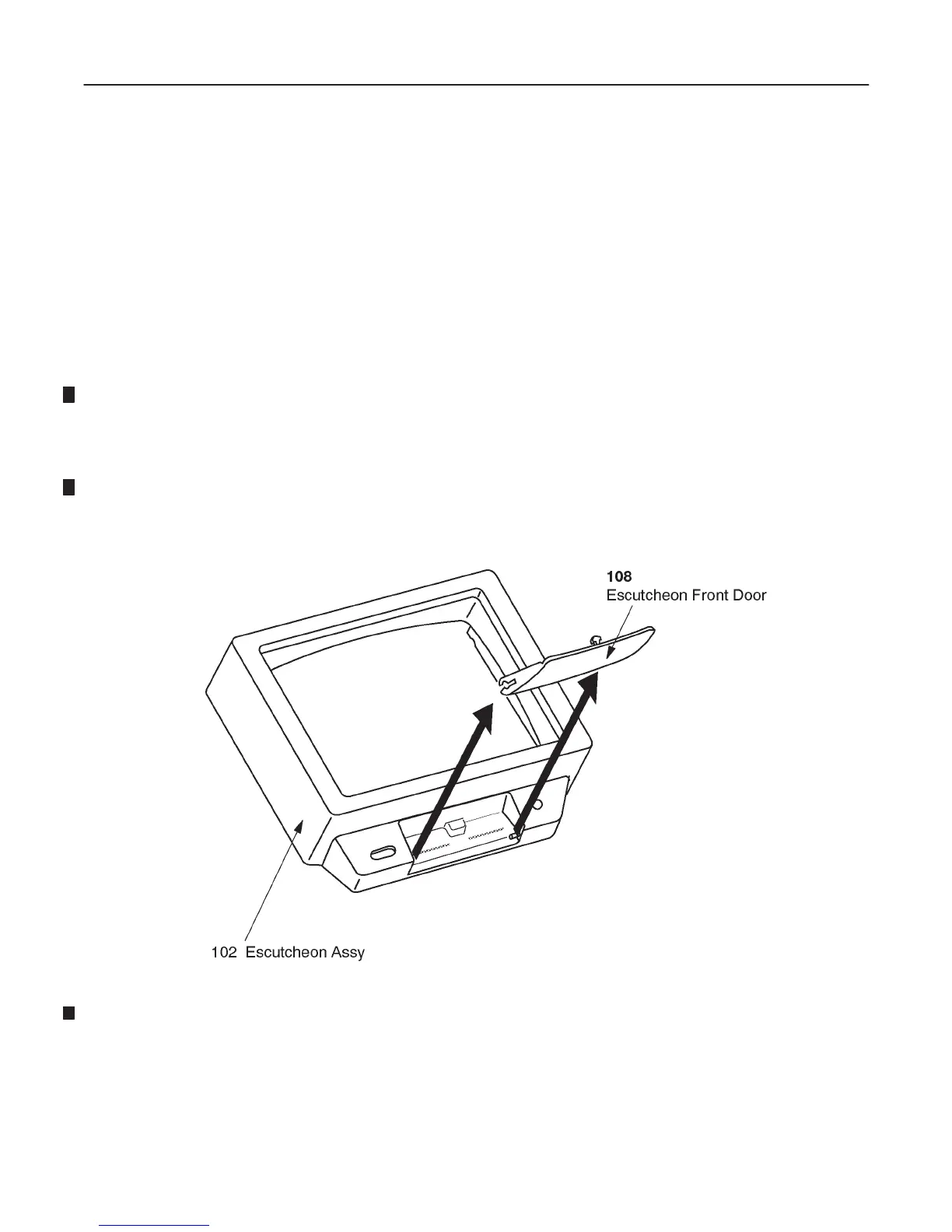

ESCUTCHEON FRONT DOOR REMOVAL
ILLUSTRATION 6–20
Note
The color of the Escutcheon for the LOGIQ 400CL is different from the other color monitor assy. Use
the proper FRU when replacing the monitor cover set for the LOGIQ 400CL.
