GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
RENEWAL PARTS
6–102
REV 9
6–2–19 CRT Cable Set (FRU No. 160)
Time Required
0.5 Hours
Tool Required
Screwdriver
Hexagonal Wrench
Procedure
Refer to ILLUSTRATION 6–38.
1. Turn OFF the system.
2. Remove the Monitor Assy NTSC/PAL(FRU 150/151). Refer to 6–2–12 on page 6–90.
3. Remove the Monitor Bottom Assy (FRU 157). Refer to 6–2–17 on page 6–98.
4. Disconnect one connector (
1
) and remove the CRT Cable Set.
CRT CABLE SET DISASSEMBLY

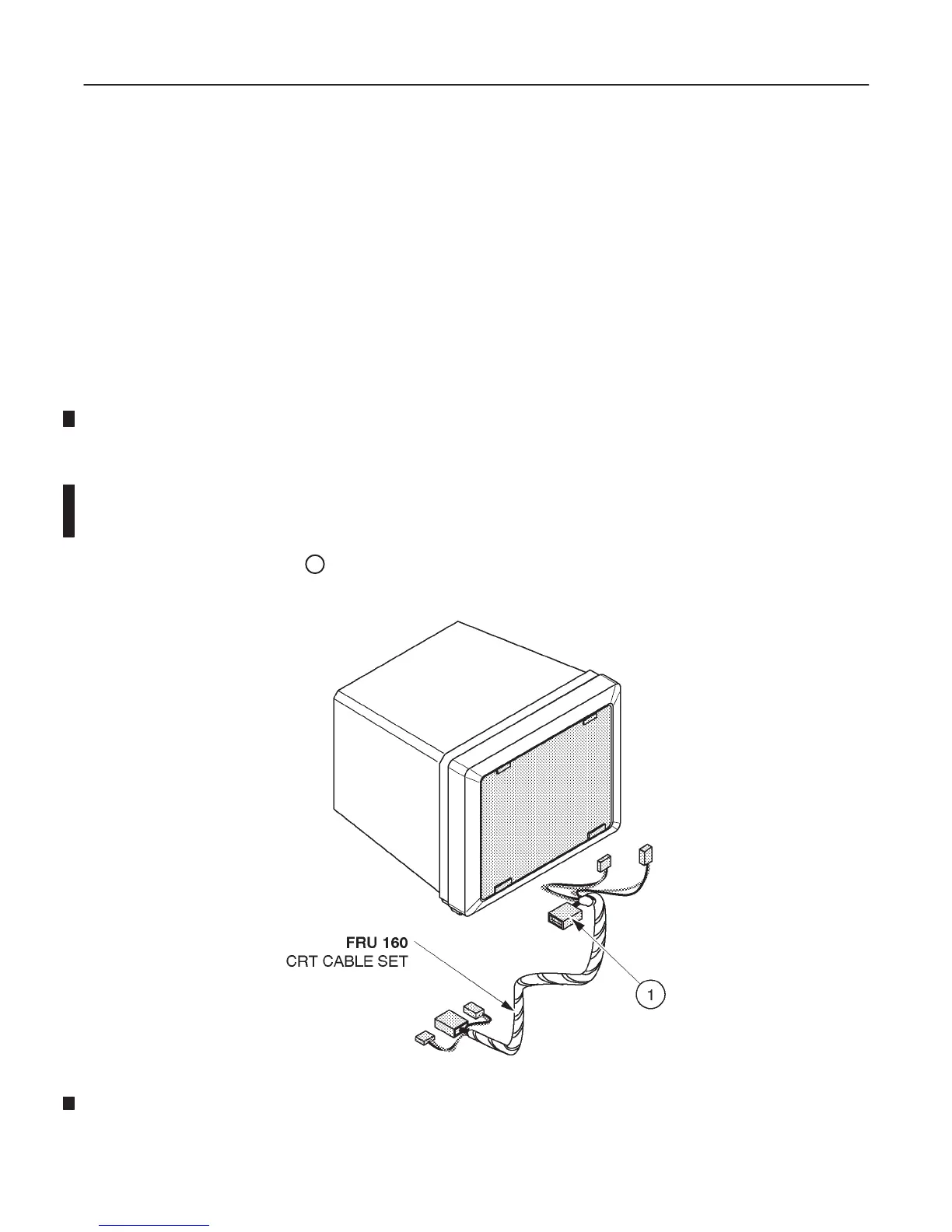

ILLUSTRATION 6–38
