GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL

RENEWAL PARTS
6–172
REV 9
6–2–66 ECG Panel Assy (FRU No. 507)
Time Required
10 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–90.
NOTE
The new type of ECG Panel Assy is installed from production unit of LOGIQ400 console with soft-
ware Version 5.01 y or later. Refer to page 6–173.
1. Turn OFF the system.
2. Remove the Side Cover Right (FRU 302). Refer to 6–2–32 on page 6–128.
3. Disconnect three connectors (
1
–
3
).
4. Unscrew two screws (
4
and
5
).
5. Loosen two screws (
6
and
7
).
6. Remove the ECG Panel Assy.

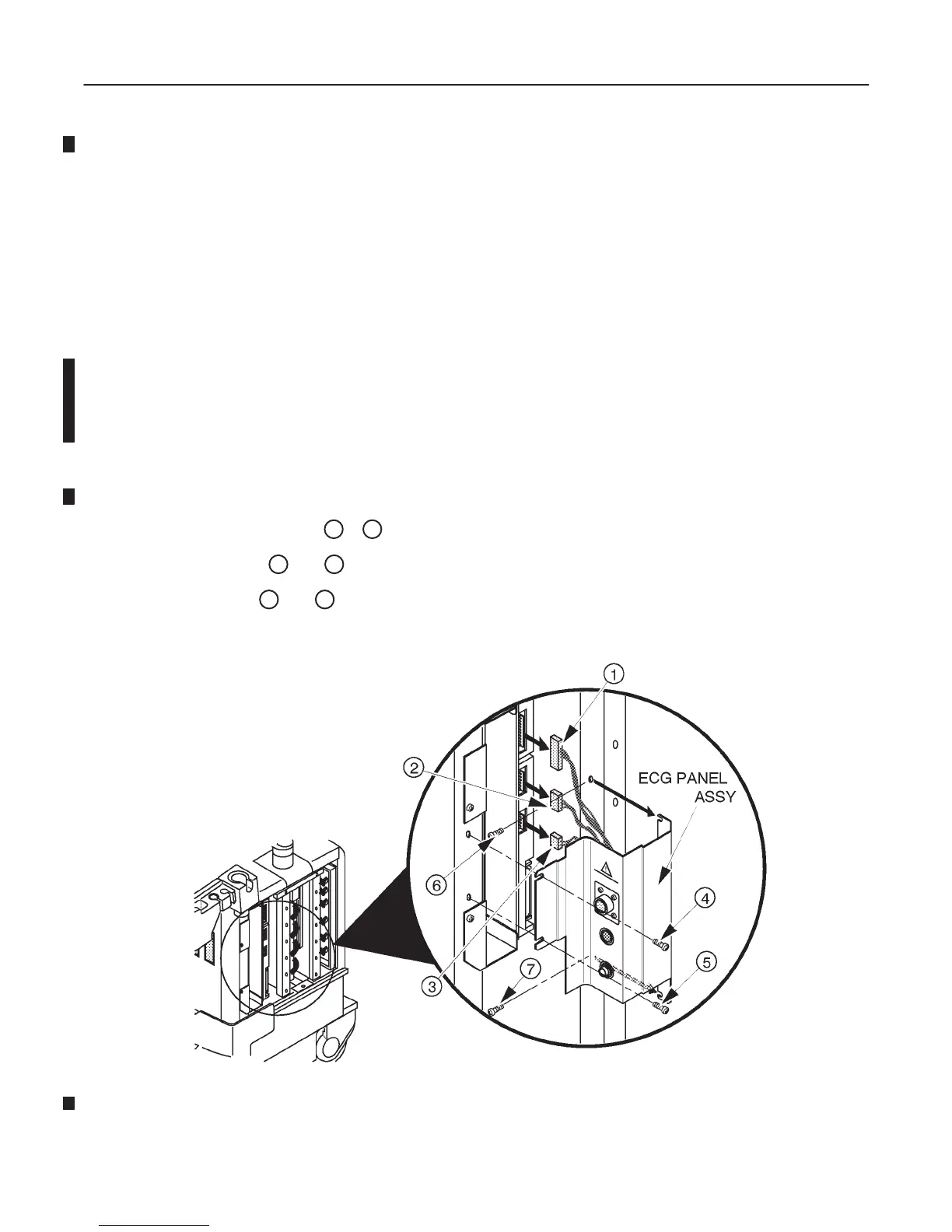

ECG PANEL ASSY DISASSEMBLY (a)
ILLUSTRATION 6–90
