8–69 OPTIONS
REV 5
8–5–11 Renewal Parts
ITEM PART NAME PART NO. QTY. DESCRIPTION
1 ECG BOARD ASSY P9522WZ 1
ECG BOARD2 ASSY 2207806 1
2 ECG PANEL ASSY P9522XB 1
3 ECG CABLE (System side) P9509KC 1 For Japan
ECG CABLE (System side) P9509KE 1 For USA, Europe, and others
4 ECG CABLE (Patient side) P9509KD 1 For Japan
ECG CABLE (Patient side) P9509KF 1 For USA, Europe, and others
5 PCG SENSOR P9509KN 1
Old ECG Board Assy (P9522WZ) can
be replaced with new ECG Board
Assy (2207806)
RENEWAL PARTS

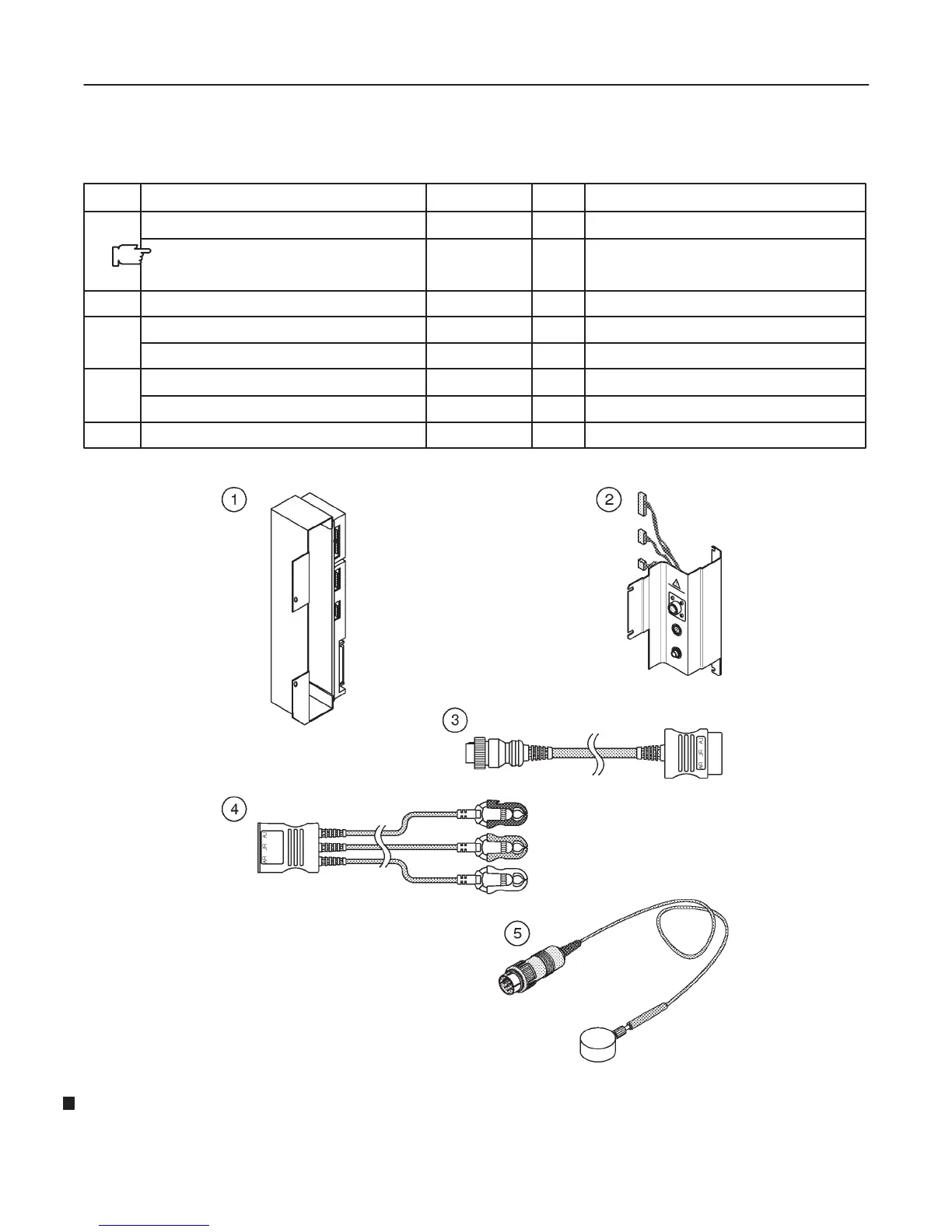

ILLUSTRATION 8–80
