GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL

RENEWAL PARTS
6–182
REV 9
6–2–72 PRAG Assy (FRU No. 519)
Time Required
45 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–98.
1. Turn OFF the system.
2. Remove the Probe CONN Set Assy (FRU 512/513). Refer to 6–2–68 on page 6–176.
3. Unscrew seven screws (
1
–
7
).
4. Unscrew three screws (
8
–
10
) to remove the metal bracket.
5. Disconnect two connectors (
11
and
12
).
6. Remove the PRAG Assy.

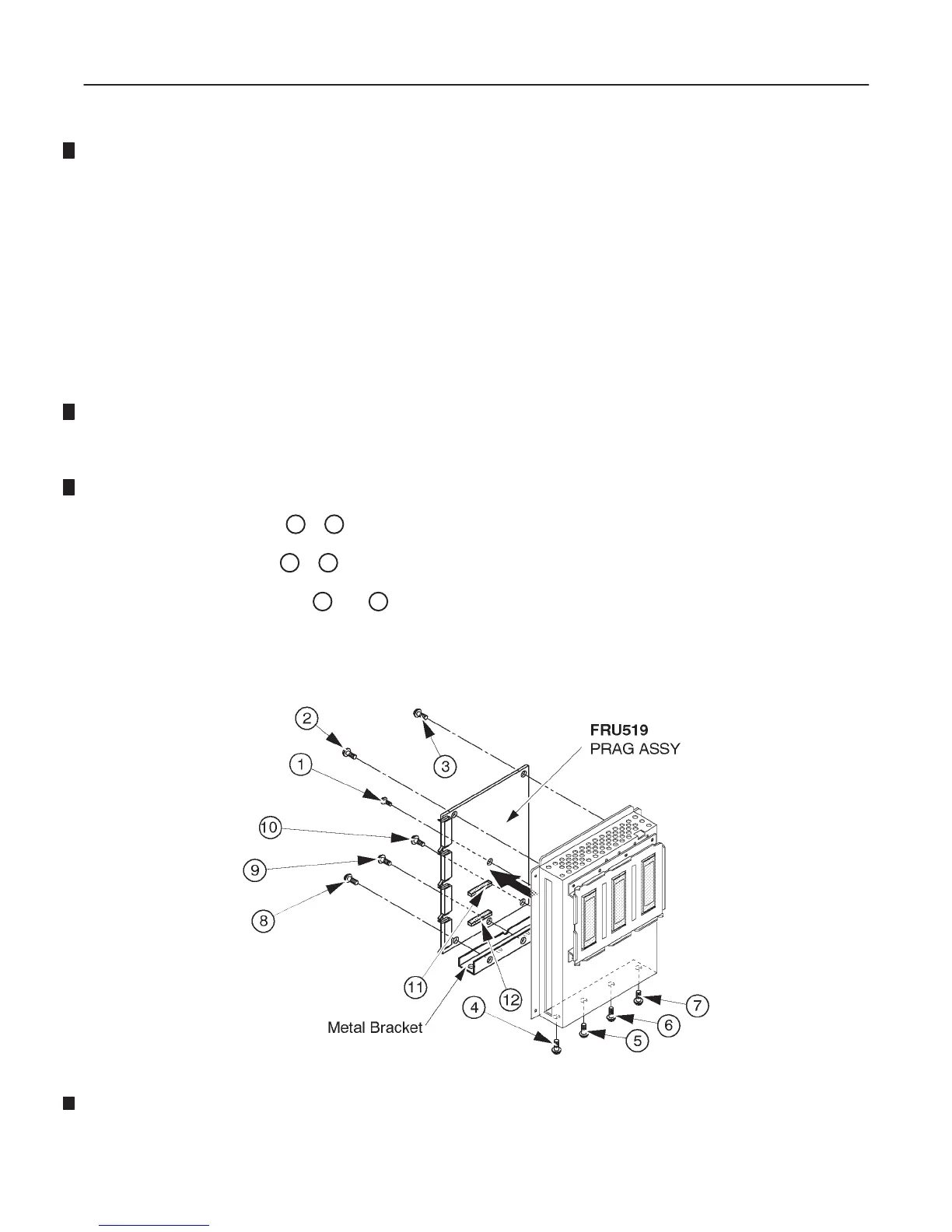

PRAG ASSY DISASSEMBLY
ILLUSTRATION 6–98
