GE LOGIQ 400 Service Manual

GE MEDICAL SYSTEMS
2127661
LOGIQ 400 SERVICE MANUAL
TM
8–55 OPTIONS
REV 5
8–5–7 Installing ECG Panel Assy
1. Connect three cables (
1
–
3
) on the ECG panel assy with the ECG board assy. Refer to ILLUSTRATION 8–60.

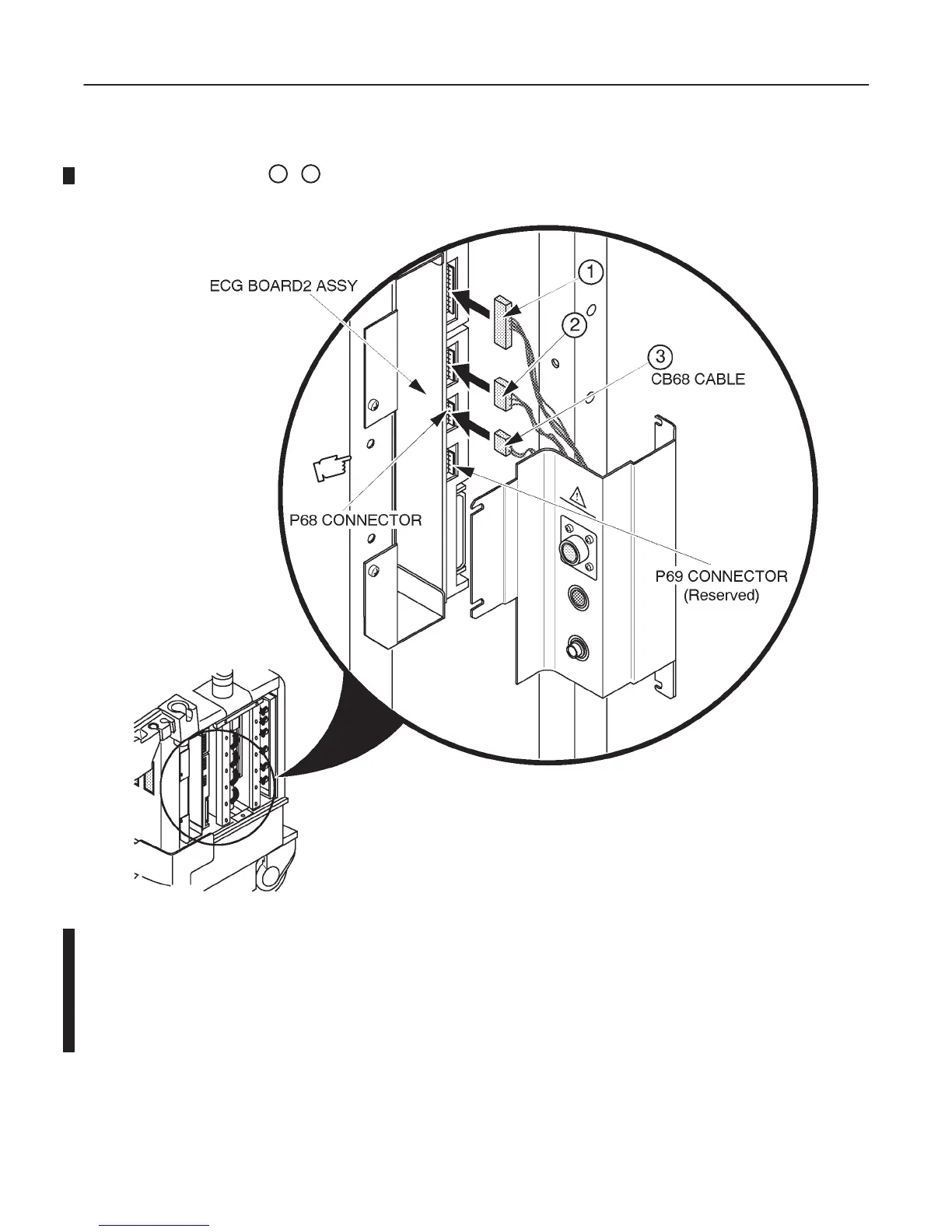

CONNECTING CABLES
ILLUSTRATION 8–60
Note
The additional 4–pin connector (P69) is supplied with the ECG Board2 Assy for the reserved function.
Be sure to plug the CB68 cable for the AUX to the P68 connector on the ECG Board2 Assy. Otherwise,
the Auxiliary function shall not be functioning properly.
