6–2–94 Cooling Fan (FRU No. 751)
Time Required
15 Minutes
Tool Required
Screwdriver
Procedure
Refer to ILLUSTRATION 6–129.
1. Turn OFF the system and unplug the main power cord.
2. Remove the Side Cover Left. Refer to 6–2–31 on page 6–127.
3. Remove the Left PS Cover. Refer to 6–2–95 on page 6–234.
4. Unscrew four screws (
1
–
4
).
5. Pull the Cooling fan outwards.
6. Disconnect the cooling fan connector (
5
).
7. Remove the Cooling Fan.
COOLING FAN DISASSEMBLY

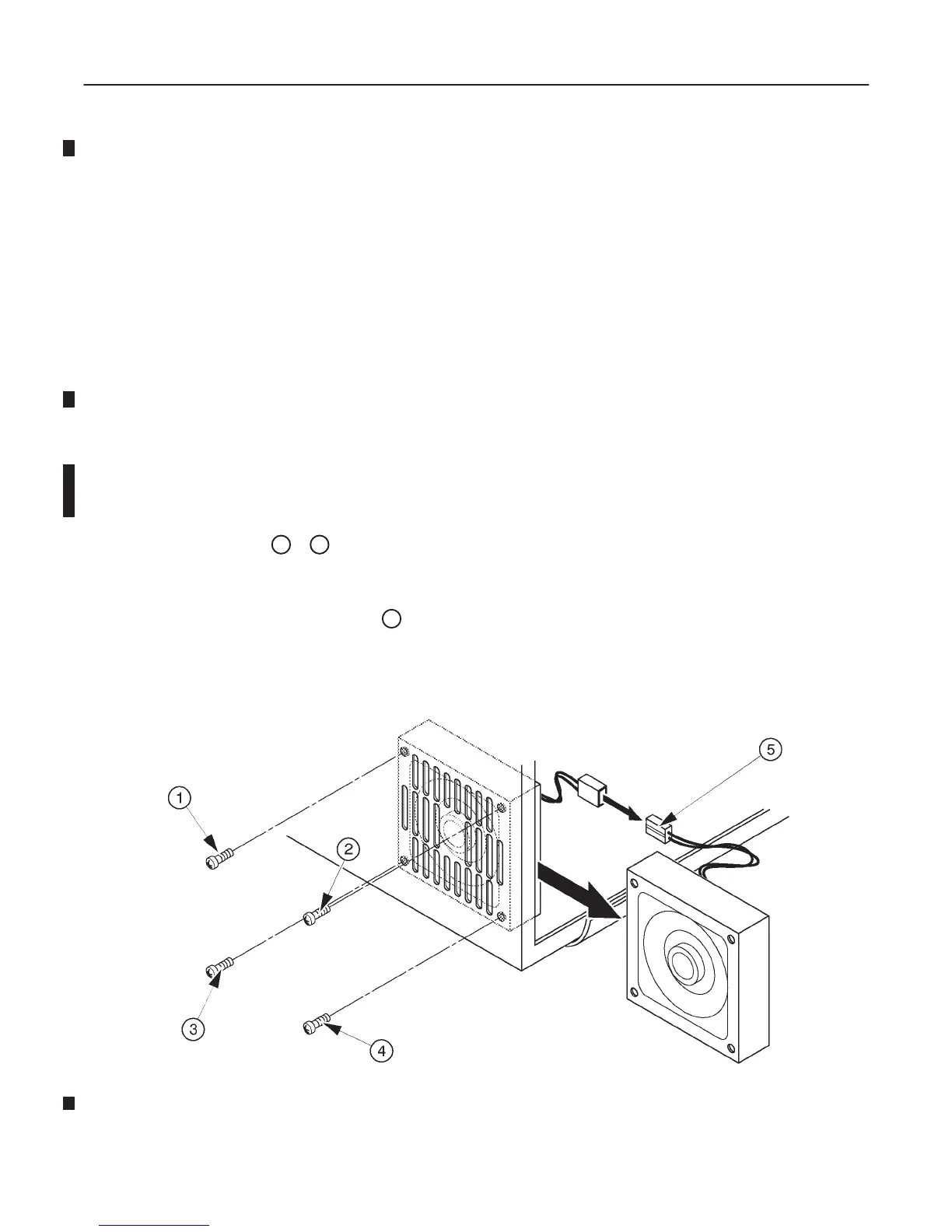

ILLUSTRATION 6–129
