GE MEDICAL SYSTEMS LOGIQ 400 SERVICE MANUAL

2127661
RENEWAL PARTS
6–111
REV 9
6–2–25 CRT Cable Set (FRU No. 182)
Time Required
0.5 Hour
Tool Required
Screwdriver
Hexagonal Wrench
Procedure
Refer to ILLUSTRATION 6–46.
1. Turn OFF the system.
2. Remove the Monitor15 Assy (FRU 170). Refer to 6–2–21 on page 6–104.
3. Remove the Monitor15 Cover Set (FRU 171). Refer to 6–2–22 on page 6–106.
4. Disconnect three connectors (
1
–
3
) from the back side of the CRT Assy.

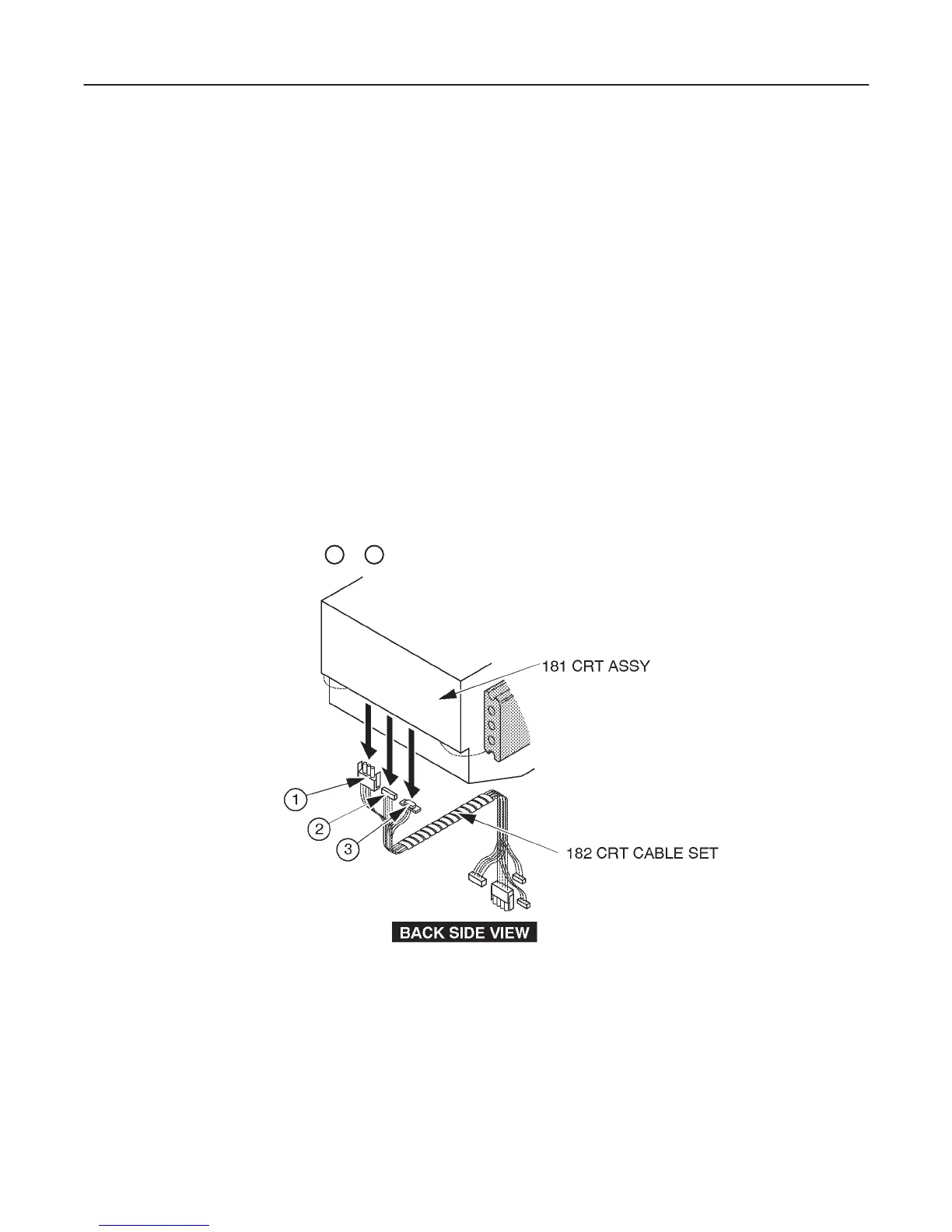

CRT ASSY DISASSEMBLY
ILLUSTRATION 6–46
