8–5–6 Installing ECG Board Assy
1. Turn the system power OFF and unplug the unit. Follow the OSHA Lockout/Tagout Requirements (29 CFR
1910.147, Direction 46–015902).
2. Remove the Side Cover Right. Refer to 6–2–27 in Chapter 6, Renewal Parts.
3. Unscrew four screws (
1
–
4
) and remove the CONN panel 2.
Note
Keep removed screws because they are required to mount the ECG panel assy onto console.

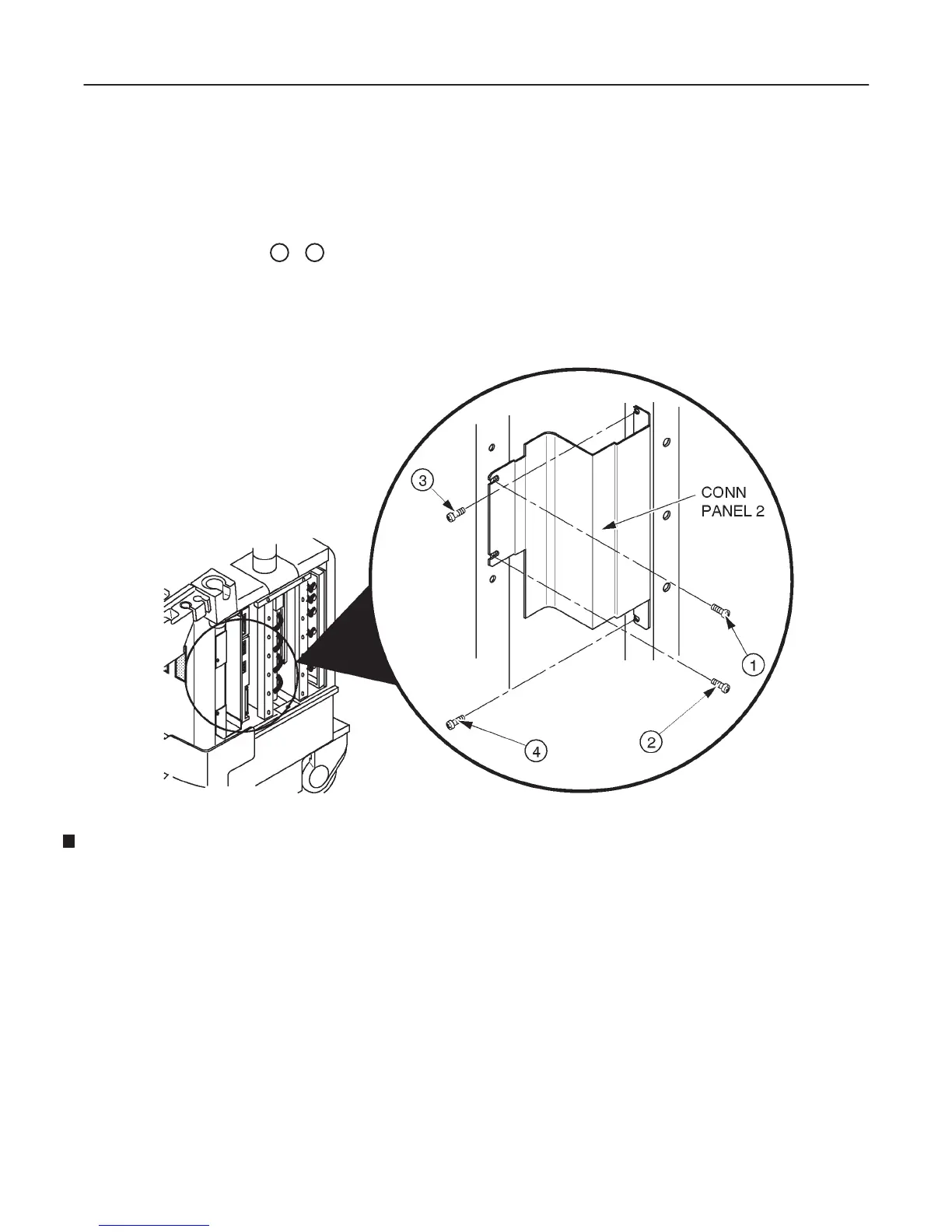

CONN PANEL 2 REMOVAL
ILLUSTRATION 8–58
