7–4 PERIODIC MAINTENANCE
REV 2
7–2–2 Cleaning
a. Clean the CRT filter.
a–1. Remove the CRT filter from the monitor. Refer to section 6–2–6 or 6–2–16 in Chapter 6, RENEWAL
PARTS.
CAUTION
Equipment damage possibility. Do not use a hydrocarbon glass cleaner on a monitor with an
anti-glare shield. Prolonged use of such cleaners damages the shield.
a–2. Wipe the monitor face and CRT filter using a soft, non-abrasive folded cloth with a glass cleaner.
a–3. Install the CRT filter after cleaning the monitor face and CRT filter. Set the CRT filter on the monitor,
insert the CRT filter clamps (
1
), and slide them inwards securely (
2
).

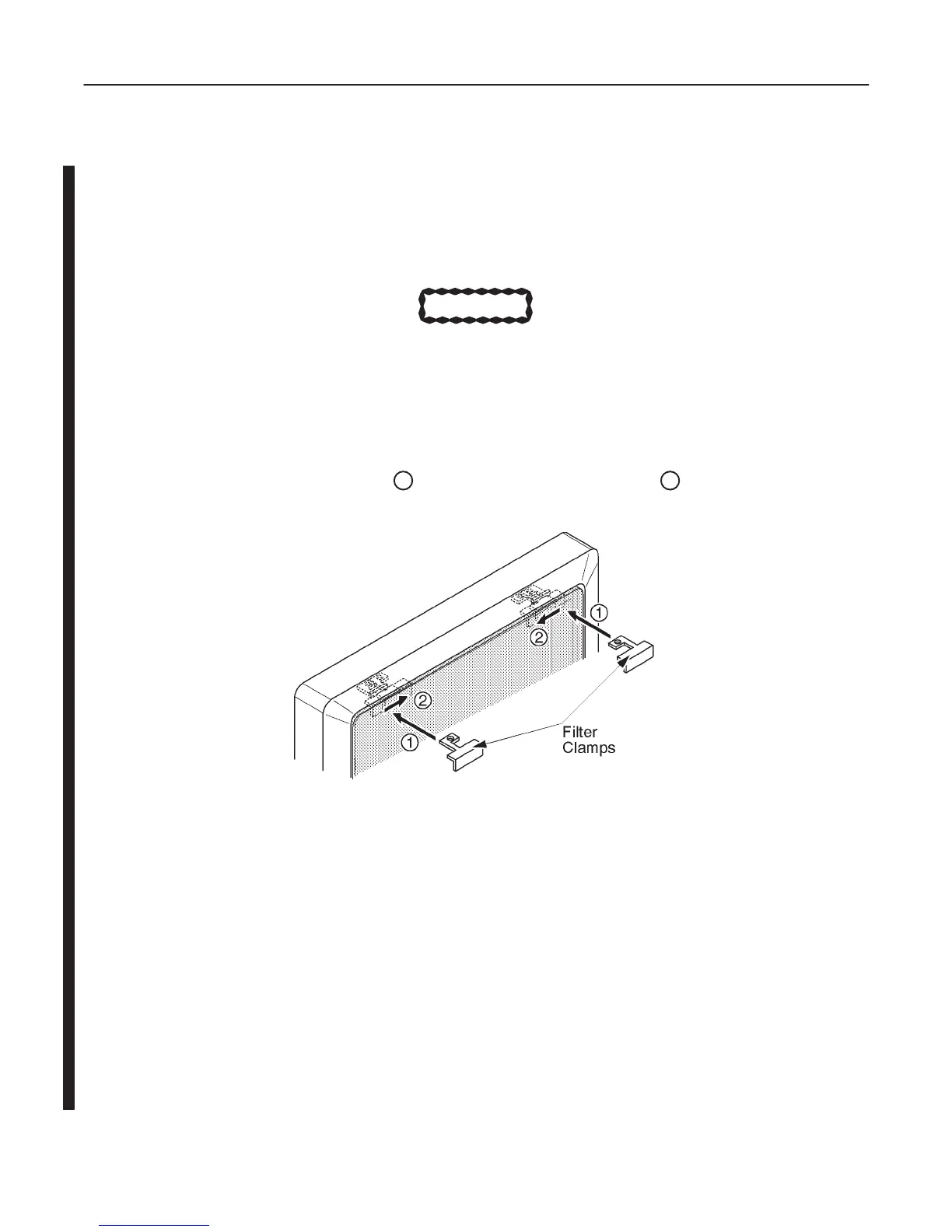

INSTALLING CRT FILTER AND CLAMPS
ILLUSTRATION 7–1
Note
Make sure that the filter is securely fixed by the filter clamps. These are important to prevent a hazard
from the filter falling. A “click” sound will be heard when the filter clamp is secured by the lock mecha-
nism.
Note
The CRT Filter Clamps and Escutcheon mounted on the black and white monitor for the LOGIQ 400
B/W console are changed to strengthen the mounting grip of the CRT filter on the escutcheon. With
these changes, the CRT Filter Clamp Kit are provided to improve the installed base systems. This is:
PART NAME QTY PART # REMARKS
CRT Filter Clamp P Kit 1 2152056 For CRT FILTER (plastic
filter, P9514BY)
